HDPE liners (Geomembranes) are produced from High-Density Polyethylene resin. The manufacturing process involves film-blowing, adding carbon black, antioxidant, anti-aging, and UV-resistance components to form a sheet.
usage
Water Harvesting using dam liners is slowly becoming a reality because of the ever changing climate and lack of water. Water harvesting using dam liners will go a long way in providing water for irrigation, animal use, industrial use and fish pond liners for fish farming.
|
Type |
(0.5mm) |
(0.75mm) |
(1.0mm ) |
|
Uses and Recommendation |
For use where there are no sharp objects. Applicable for medium dams. Can hold upto 4,000m3 |
Applicable for large projects Can hold more than 4,000m3 |
Applicable for large projects. Can hold more than 4,000m3 |
|
Dimensions |
Lengths of upto 200m and widths of upto 8m. Can be welded together. |
Lengths of upto 150m and widths of upto 8m. Can be welded together. |
Lengths of upto 120m and widths of upto 8m. Can be welded together. |
|
Lifespan |
10-15 years |
15-20 years |
20-30 years |
|
Colour |
Black |
Black |
Black |
|
UV Stabilised |
UV treated to ensure longevity |
UV treated to ensure longevity |
UV treated to ensure longevity |
advantages
- Good dam liners must be UV treated to increase longevity. Quality dam liners can last between 10-30 years depending on the thickness and gauge.
- They should be made from virgin materials, not recycled. Recycled dam liners have very short lifespan and tend to crack within 1 year.
- They materials should be highly resistant to abrasion and puncturing.
- They should be easy to work with.
applications
Dam and pond liners
Floating Covers
Turkey Nests
Tailings Dams & Leach Pads
Evaporation Ponds
Secondary Containment Barriers
Water reservoirs
Canal/ Channel liners for irrigation
Tank liners for concrete tanks
Landfill cells and caps
Fuel Bunds
Hazardous waste bunds
Cross country water horse jumps
Wash down bays
Rain Garden Beds
Bioretention ponds
Bioretention Swale Drains
Underground tanks
Treatment plant lagoons
Snow making water storage
Potable water lagoons
Wetlands
Contaminated soil containment
Ornamental ponds
Farm / Market garden dams
Aquaculture industry liners
Agriculture industry liners
Backyard ponds
Gas Covers
Baffle Curtains
Effluent pond liners
Processing facilities
Skate park practice ramps
Root barrier protection
Waterproofing / Pool Liners / Spa Liners

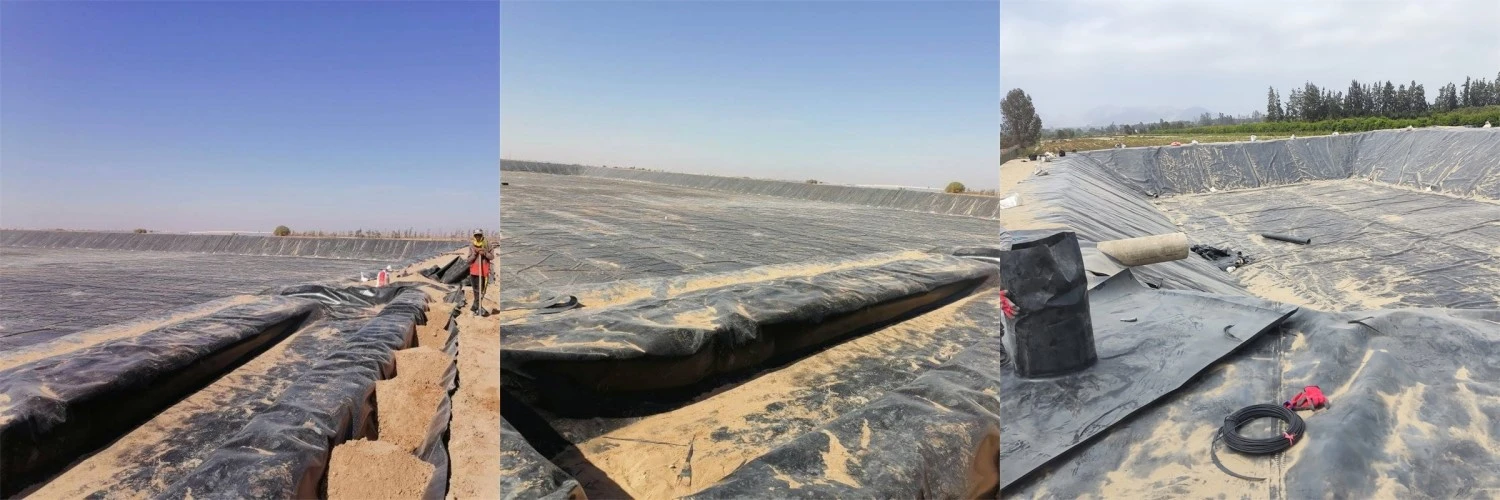

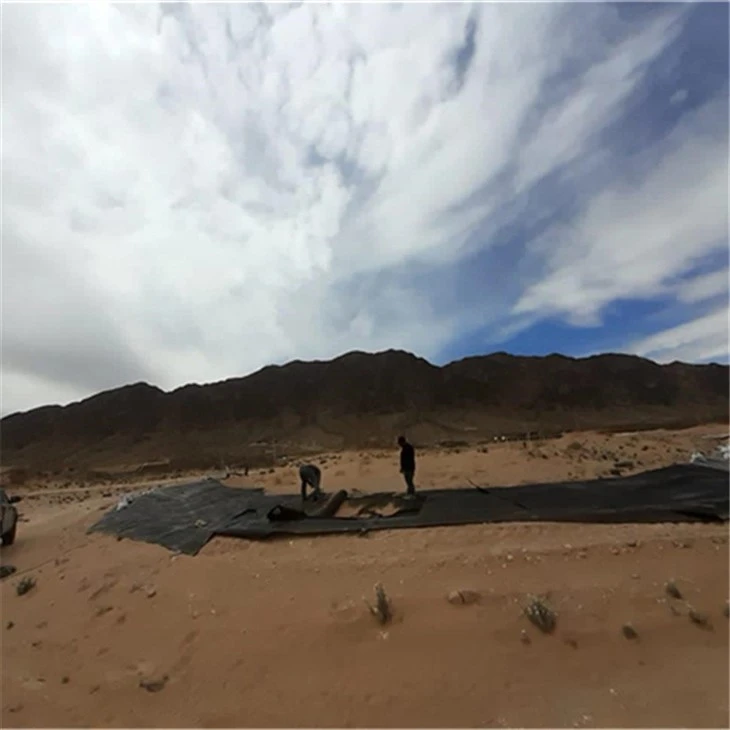

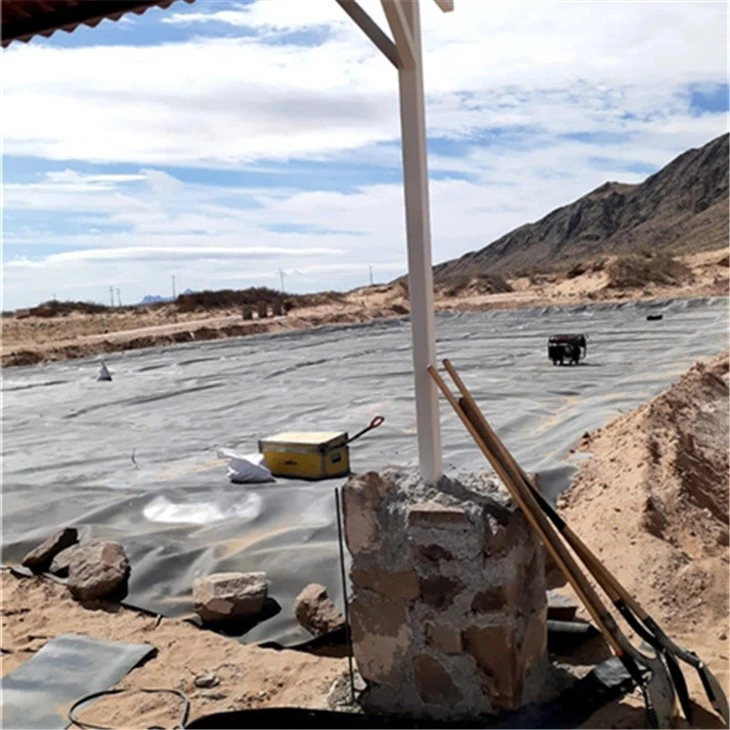

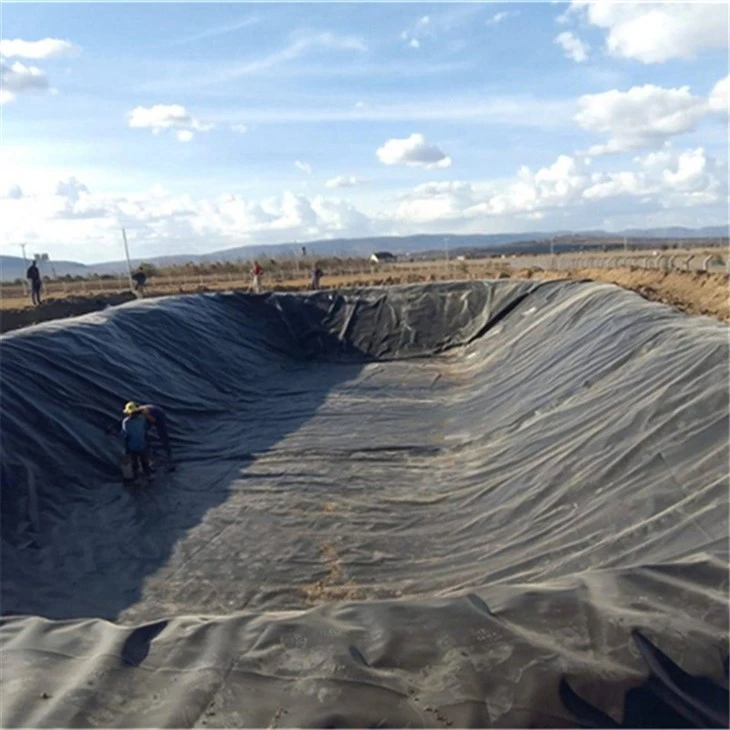

How to install geomembrane dam liner
● The surface must be inspected immediately before the liner is placed. Any debris that could damage the liner or prevent an even/smooth deployment must be removed.
● The deployment of the rolls should be in a manner that will require the least amount of welding.
● The rolls are placed as pre-determined in the blueprint or design.
● If the lining is going over a slope it is laid vertically up and down the slope. Additionally, material that is deployed on a slope should be carefully unrolled and not simply unrolled freely downhill. On slopes that are curved, material may require a diagonal cut in order to ensure welds are perpendicular.
● The installers will take careful precautions to prevent wrinkling
● Anchor the linings as they are laid. Usually sandbags or tires are used.
Specification
Thickness: 0.1mm – 2.0mm
Width: 5mtr – 10mtr
*We can supply other widths but they are Special Order (MOQs apply) and have a longer lead time
Length: 50m-200mtr/ roll or as requested.
Material: HDPE
Colour: Black
