HDPE Geomembrane
Tai'an City RuiHeng Building Materials Co., Ltd is specialized in the research, development, production and sales of geosynthetic materials, plastic products and plastic machinery. Our company is devoted to geosynthetic material research and development and application.We has more than 18 years experience of geotextiles production in geosynthetic products, including geomembrane, geotextile, HDPE geomembrane, geocell, 3D geomat, geomembrane welding machine,extrusion welder and welding rod,etc. We provide complete geosynthetic solutions for ground stabilization, reinforcement and drainage, erosion control, bank and slope protection.
-
RAS System Geomembrane Tank LinerHDPE geomembrane liners are the engineering foundation of modern recirculating aquaculture systems (RAS). Made from premium high-density polyethylene, they provide a completely impermeable,Add to Inquiry -
Cobalt Ore GeomembraneCobalt-based high-density polyethylene geomembrane is designed not just as a liner but as a high-performance, long-term engineering solution. This is no ordinary geomembrane; it's a special,Add to Inquiry -
Geomembranes For Tilapia PondsFor tilapia farming, although the initial investment of using geomembrane to build ponds is high, it can effectively prevent seepage, facilitate pollution cleaning, and especially fundamentallyAdd to Inquiry -
Greywater Systems With GeomembraneUsing geomembranes in greywater systems is a common and highly effective practice, crucial for environmental protection and water reuse. Providing a primary barrier to prevent uncontrolled seepageAdd to Inquiry -
Liner For Spirulina TankUsing geomembranes as linings for spirulina ponds is a very effective and increasingly popular option, especially for medium- to large-scale farms.Add to Inquiry -
Coal Ash Barrier GeomembraneCoal ash barrier geomembrane is a specially designed impermeable liner designed to retain coal combustion residual (CCR), commonly known as coal ash. A byproduct of coal-fired power plants, coal ashAdd to Inquiry -
Hydropower Project GeomembraneGeomembranes have been used in dams since 1959 and their use in hydropower structures continues to grow. Geomembranes have been used, exposed, and covered, for rehabilitation and new construction.Add to Inquiry -
Photo-oxidation Of HDPE GeomembraneUV radiation is the primary aging threat to HDPE geomembranes in open-air projects (such as landfill caps and exposed reservoirs). Its essence is a light-induced oxidation chain reaction that causesAdd to Inquiry -
Chemical Erosion On GeomembraneThe impact of chemical erosion on HDPE geomembranes is mainly reflected in three core mechanisms: oxidative degradation, environmental stress cracking, and increased permeability caused by swelling.Add to Inquiry -
Different Thicknesses Of GeomembranesThe thickness of geomembranes is one of their key performance indicators, usually ranging from 0.5 mm (20 mil) to 3.0 mm (120 mil) or even thicker. The choice of thickness is not random, but needs toAdd to Inquiry -
Capping GeomembraneGeomembrane is a high-density, low-permeability synthetic polymer designed specifically to act as an artificial barrier over objects or areas that need to be isolated, contained or sealed.Add to Inquiry -
Durable Excellent HDPE GeomembraneGeomembranes represent the pinnacle of engineered impermeable barriers, engineered to provide superior long-term containment and environmental protection for the world’s most critical infrastructureAdd to Inquiry
Why choose us
Advanced Materials
We manufacture custom geomembrane liners made from reinforced polyethylene (RPE), reinforced polypropylene (RPP) and low density polyethylene (LDPE). Our RPE and RPP liners are stronger, provide better puncture and tear resistance, are lighter weight and have excellent UV resistance when exposed to sunlight.
Reliable Quality Control
The company has established a national-standard laboratory for in-house quality control. We built a strict quality control system in all aspects from raw materials testing,production processes to final product quality testing.
Complete Qualifications
Our factory is certificated by ISO9001, ISO14001, and OHSAS18001. All geomembranes have passed the certificates of the TUV, Soncap, SASO, BV and the test of SGS and Intertek etc.
Production Market
Our products have been widely used by clients in more than 30 countries and regions, such as Australia,Indonesia,India,Philippine, Tanzania, Zambia, Kenya, Kuwait, UAE, Spain, USA, Malaysia, Singapore, Peru, Chile, Ecuador etc. We have won the praises of customers.
|
Property |
Unit |
Test method |
WGL10 |
WGL20 |
WGL25 |
WGL30 |
WGL40 |
WGL50 |
WGL60 |
WGL70 |
WGL80 |
|
Raw Material |
|
ASTM D 276 |
Polyester (PET) |
||||||||
|
Tensile Strength MD |
kN/m |
ASTM D 4595 |
100 |
200 |
250 |
300 |
400 |
500 |
600 |
700 |
800 |
|
Tensile Strength CD |
kN/m |
ASTM D 4595 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Elongation MD |
% |
ASTM D 4595 |
<12 |
||||||||
|
Elongation CD |
% |
ASTM D 4595 |
<12 |
||||||||
|
Permeability |
cm/s |
ASTM D 4491 |
≥ 1 x 10-4 |
||||||||
|
Roll Width |
m |
|
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
3.5~3.6 |
|
Roll Length |
m |
|
700 |
400 |
300 |
250 |
180 |
150 |
130 |
100 |
90 |
|
Container loading |
m2 |
Approx./40'HC |
70,000 |
45,000 |
40,000 |
35,000 |
30,000 |
23,000 |
20,000 |
T.B.A |
T.B.A |
Advantages of HDPE Geomembrane
Wide Temperature Range and Long Service Life
HDPE geomembrana can withstand a broad range of temperatures, making it suitable for both hot and cold climates. It has a long service life, providing reliable performance over extended periods of time.
Outstanding Chemical Resistance
HDPE geomembrana has excellent resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This chemical resistance ensures its suitability for applications where exposure to corrosive substances is expected.
UV Resistance
The geomembrana is formulated with UV stabilizers, providing excellent resistance to ultraviolet radiation. This feature enables it to withstand prolonged exposure to sunlight without degradation, making it ideal for outdoor applications.
Weldability
HDPE geomembrana can be easily welded using various techniques, such as hot wedge welding or extrusion welding. This allows for efficient installation and ensures the creation of reliable seams, providing a continuous impermeable barrier.
Cost-Effectiveness
HDPE geomembrana offers a cost-effective solution compared to alternative materials. Its long service life, low maintenance requirements, and ease of installation contribute to overall cost savings.
Durability
HDPE geomembrana is highly durable and resistant to punctures, tears, and abrasions. It can withstand mechanical stresses and deformations without compromising its performance, providing long-lasting protection.
Cold Temperature Performance
HDPE geomembrana maintains its flexibility and integrity even in cold temperatures, allowing for reliable performance in freezing conditions.
Complete Width and Thickness Specifications
HDPE geomembrana is available in a wide range of sizes, allowing for customization to meet project-specific requirements. This ensures that the geomembrana is precisely tailored to achieve the desired performance and efficiency.
Application of HDPE Geomembrane

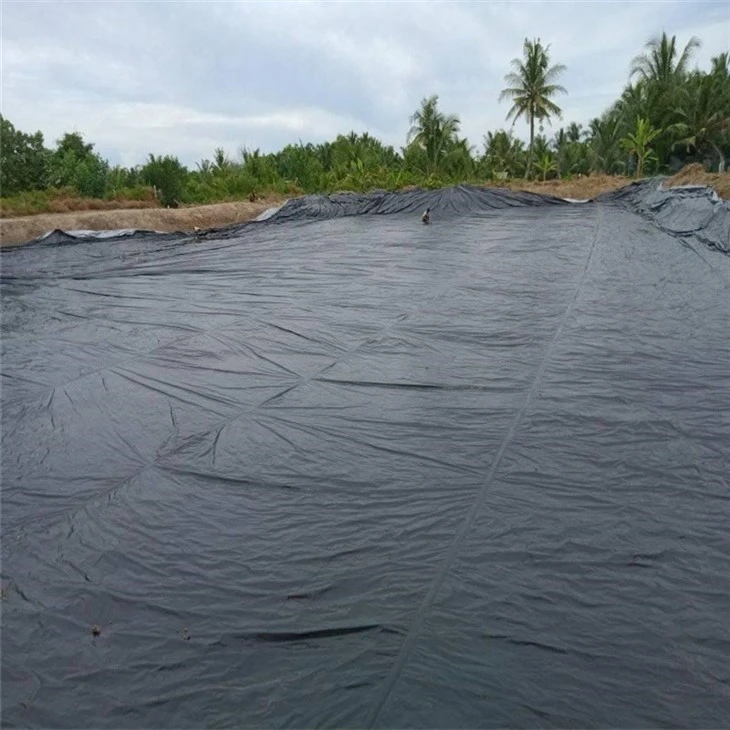

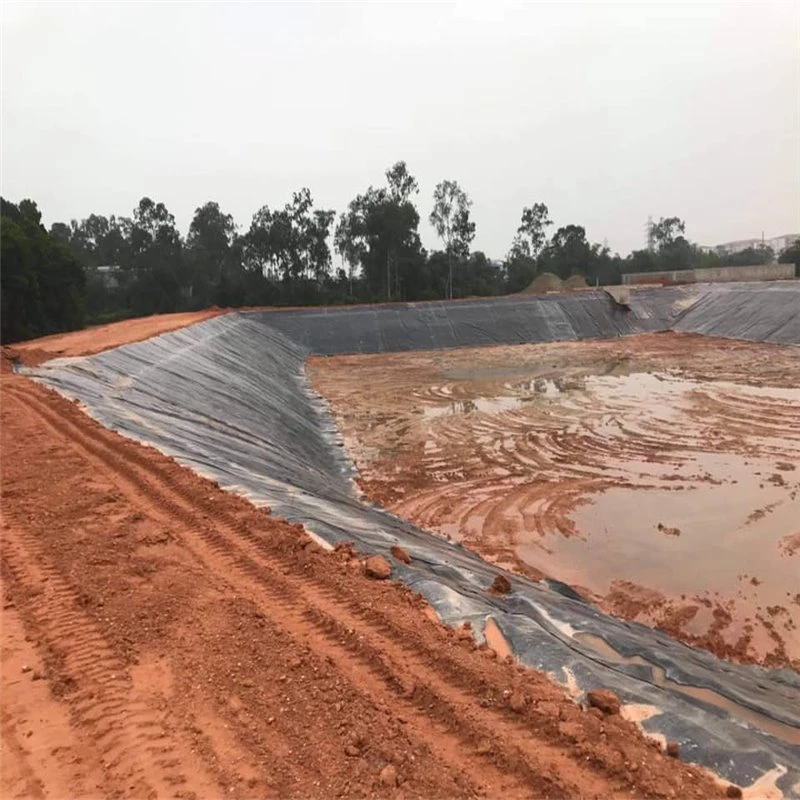

Landfill Construction
Used as a liner to prevent leachate from contaminating surrounding soil and groundwater.
Water Management
Applied in reservoirs, ponds, and canals to prevent water loss due to seepage.
Mining Industry
Used in heap leach pads and tailing ponds to contain hazardous materials and chemicals.
Agriculture
Helps to line ponds for irrigation or maintain water tables in agricultural fields.
|
1 |
Sample Confirmation |
1 |
Comprehensive service with separate after-sale team |
|
2 |
Providing information consulting and technical guidance. |
2 |
Satisfied solution while any problem identified. |
|
3 |
Packaging can be customized. |
3 |
Exclusive and unique solution provided by professional engineers. |
|
4 |
Reply to your enquiry in 24 working hours. |
4 |
New craft, new technology and other related advisory services. |
Packaging & Shipping
We're professional HDPE geomembrane manufacturers and suppliers in China, specialized in providing high quality products with low price. We warmly welcome you to buy HDPE geomembrane for sale here from our factory.
