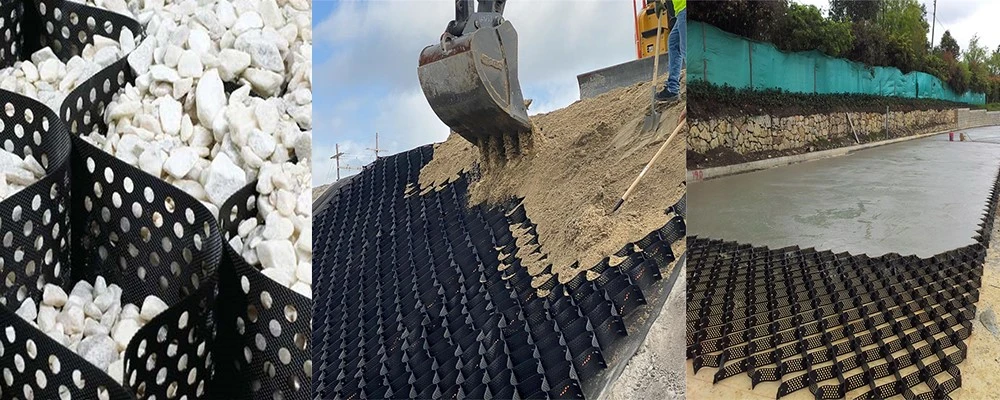

Geocell refers to the Cellular Confinement System, which is an excellent geosynthetic erosion control system that confines the desired fill and resists downward migration of material due to hydraulic flows. It is widely used for slope erosion protection, earth protection, load support and canal protection.
Products Description
Due to its engineered, expandable and durable high-density polyethylene honeycomb structure supported by highly chemical and water resistant features, the Cellular Confinement System provides excellent protection for challenging slopes against erosion while ensuring time stabilization of slopes at all times. In addition to slope protection, the semi-rigid surface cellular confinement system provides significant load support for roads and yards, considerably reducing embankment thickness. Furthermore, it also serves as an excellent channel protection system, protecting channel shipments under severe erosion and continuous flow conditions, confines the desired fill, and resists downward migration of material due to hydraulic flows. It is widely used for grounding protection, load support and channel protection.
|
ITEM |
RH-250 |
RH-200 |
RH-150 |
RH-100 |
RH-75 |
RH-50 |
|
Cell height (mm) |
250 |
200 |
150 |
100 |
75 |
50 |
|
Solder distance (mm) |
340 |
|||||
|
Sheet thickness (mm) |
1±0.05 |
|||||
|
Weight (g/m2) |
3310±200 |
2648±200 |
1986±200 |
1324±200 |
933±200 |
662±200 |
|
Welding place adhesion (N) |
2560 |
2050 |
1460 |
1023 |
864 |
560 |
|
PS: Special specification according to agreement or contract execution. |
||||||
Advantage
1. Virgin HDPE basic with Unique Formula.
2. Tensile Strength reaches 33000 kN/m² (33 MPa)
3. Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4. Various weld spacing available from 220mm to 1600mm
5. Various strip height available from 25mm to maximum 300mm
6. Maximum strip length reaches 8m, expanded width reaches 6m.
7. Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8. Easy to transport, all weather installation with high construction speed.
9. Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.
V
Retaining Walls
Cellular Confinement Systems have been used to improve the performance of paved and unpaved roads by reinforcing the soil at the subgrade-base interface or within the base layer. The geocell's effective load distribution creates a strong, rigid 3D cellular mattress that can reduce vertical differential settlement in soft subgrades, improves shear strength, and increases load-bearing capacity while reducing the amount of aggregate material necessary to extend the useful life of roads.

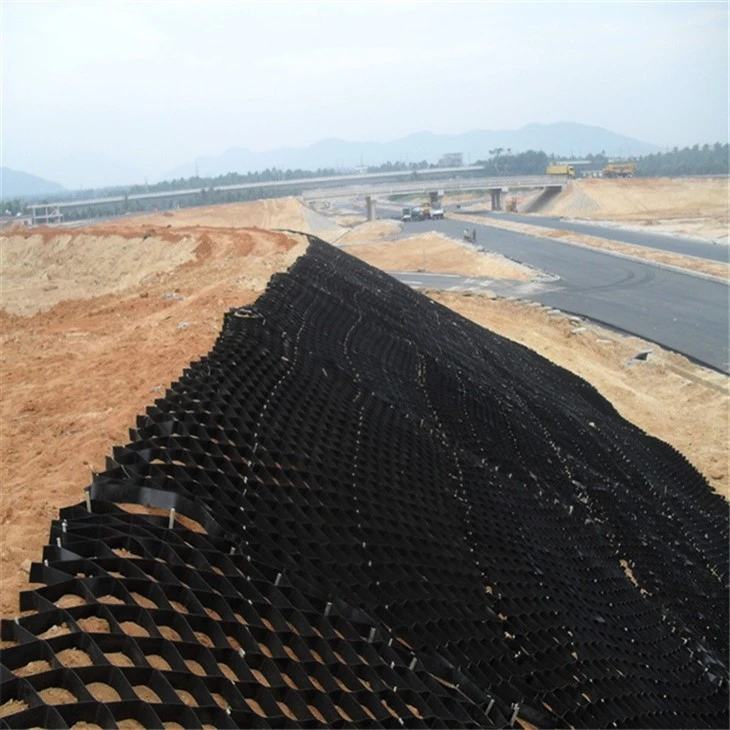

Slope Protection
Geocell slope protection systems may be designed with a variety of infill materials to meet project requirements for aesthetics, stability, environmental impact, material availability, and erosion control. The system also provides protection to impervious liners.
Road Support
Geocell load support system is a highly effective, economical solution to the road, parking, and yard surface problems that result from subgrade material failure or surface or base material instability. Under concentrated or distributed loads, the 3D cellular structure confines infill material and controls the shearing, lateral and vertical movement of the infill material.
Channel Lining
Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.

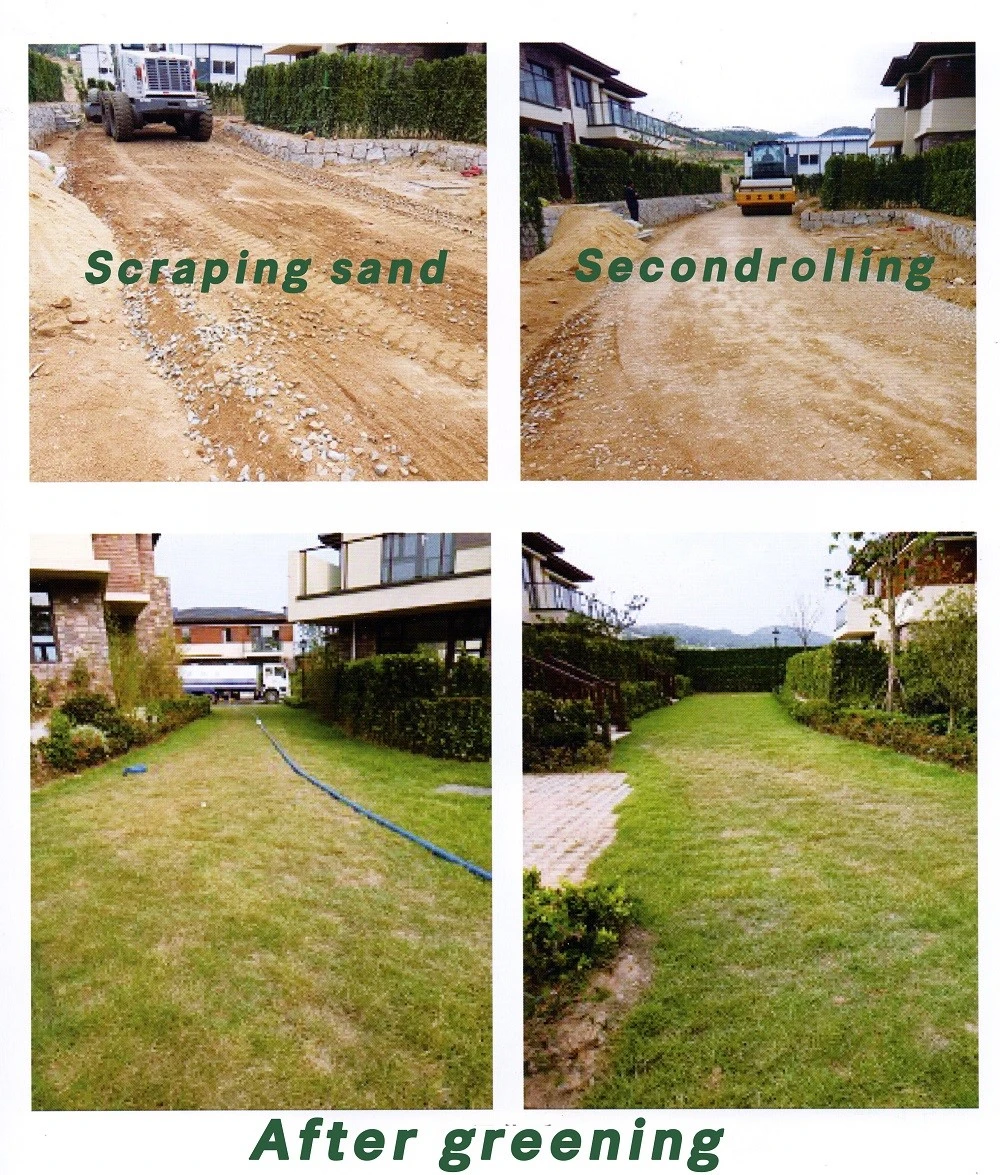

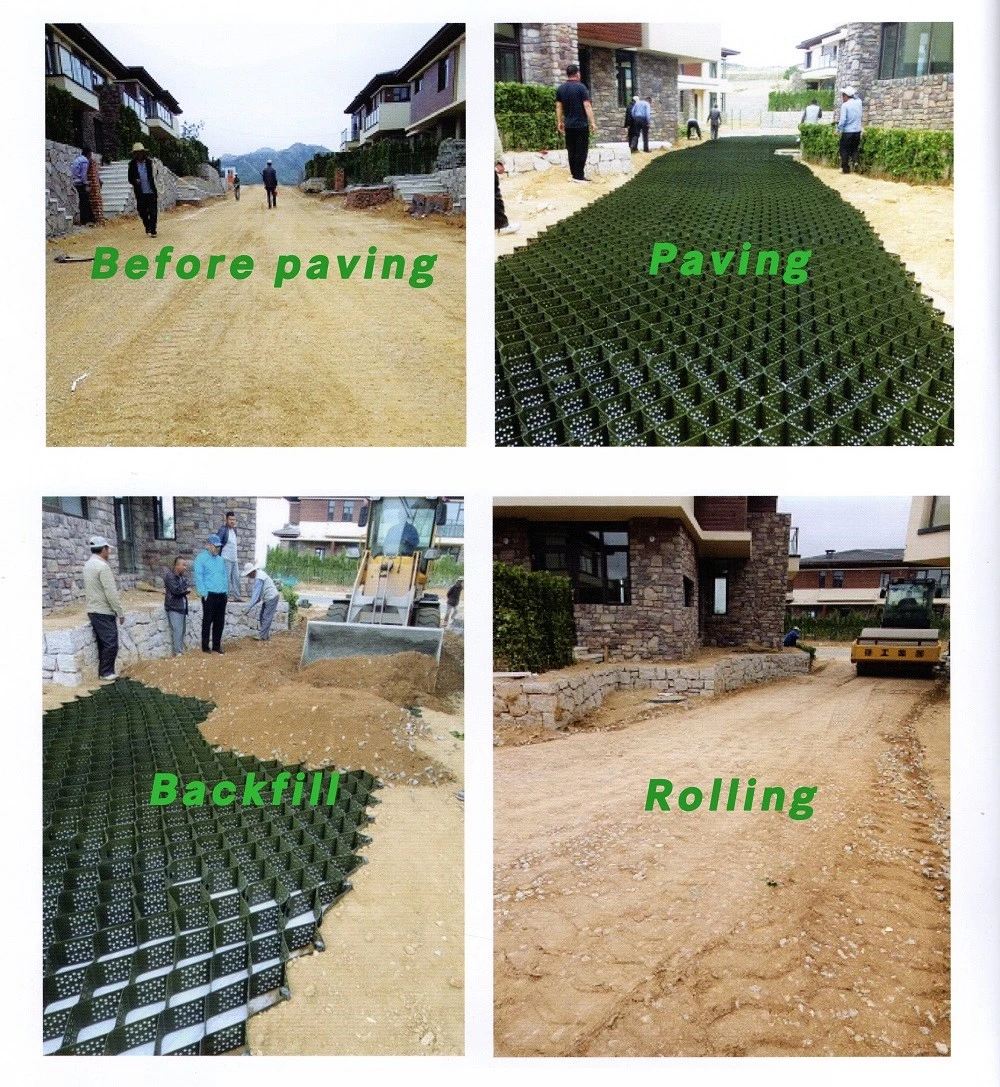

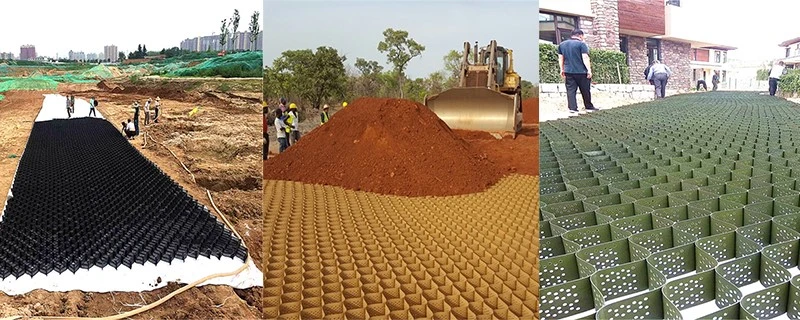

Geocell Construction Method

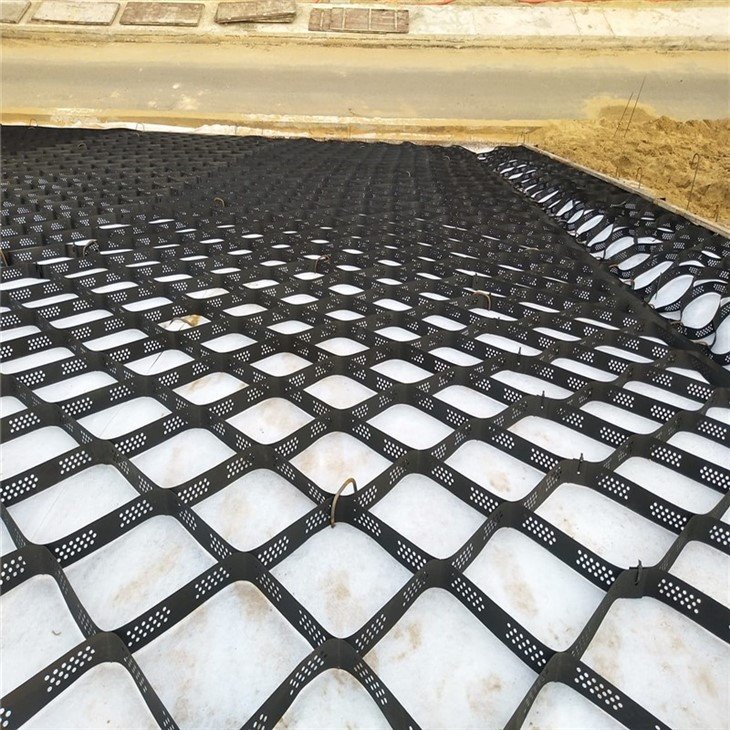

* Unfolding the geocell (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)
* Fixing it with nail or connecting with the frame of stretcher.
Geocell Packing Details.
Plastic packing belts suit for plastic geocell cellular confinement system
Full container load (FCL)or LCL load both are OK
standard Export Packing. Or according to customer request
Port: QINGDAO
Why Choose Us
1, Quality stable, long-term warranty
2, Shipment in time
3, Quickly response
4, More than 12 years experience
5, Installation guide
6, Total solution sourcing
