Products Description

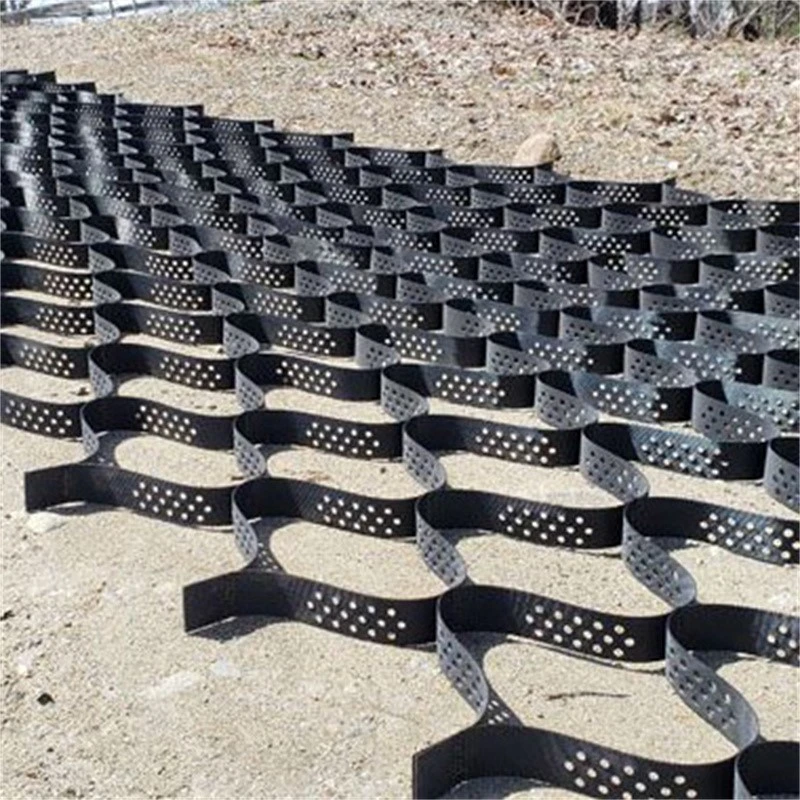

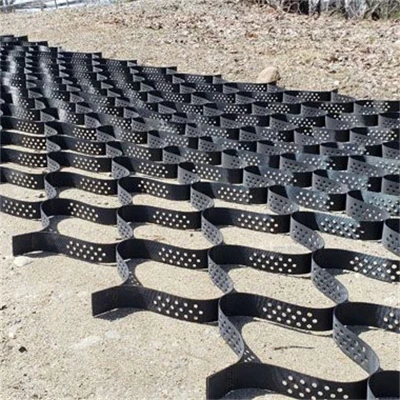

The 200mm Geocell Geogrid is an advanced cellular confinement system designed to enhance soil stabilization, erosion control, and load support in civil engineering and construction projects. Its unique three-dimensional honeycomb structure provides superior reinforcement for weak or loose soils, ensuring long-term durability and performance in challenging environments.
Engineered for versatility, the 200mm Geocell Geogrid is widely used in road construction, slope protection, retaining walls, and landscaping applications. Its high-strength polymer composition resists UV degradation, chemical corrosion, and extreme weather conditions, making it a reliable solution for both temporary and permanent projects
|
Item Model |
Height (mm) |
Welding distance |
Sheet thickness (mm) |
Seam peel strength ≥(N) |
Expanded Cell Size (mm) |
Expanded Panel Size (m) |
|
|
smooth |
texture |
||||||
|
CELL-100-330 |
100 |
330 |
1.1 |
1.5 |
1420 |
244*203 |
2.44*6.15 |
|
CELL-150-330 |
150 |
2130 |
244*203 |
2.44*6.15 |
|||
|
CELL-200-330 |
200 |
2840 |
244*203 |
2.44*6.15 |
|||
|
CELL-100-356 |
100 |
356 |
1.1 |
1.5 |
1420 |
259*224 |
2.56*6.52 |
|
CELL-150-356 |
150 |
2130 |
259*224 |
2.56*6.52 |
|||
|
CELL-200-356 |
200 |
2840 |
259*224 |
2.56*6.52 |
|||
|
CELL-100-400 |
100 |
400 |
1.1 |
1.5 |
1420 |
295*250 |
4*5 |
|
CELL-150-400 |
150 |
2130 |
295*250 |
4*5 |
|||
|
CELL-200-400 |
200 |
2840 |
295*250 |
4*5 |
|||
|
CELL-100-445 |
100 |
445 |
1.1 |
1.5 |
1420 |
320*287 |
2.56*8.35 |
|
CELL-150-445 |
150 |
2130 |
320*287 |
2.56*8.35 |
|||
|
CELL-200-445 |
200 |
2840 |
320*287 |
2.56*8.35 |
|||
|
CELL-100-660 |
100 |
660 |
1.1 |
1.5 |
1420 |
488*406 |
2.44*12.29 |
|
CELL-150-660 |
150 |
2130 |
488*406 |
2.44*12.29 |
|||
|
CELL-200-660 |
200 |
2840 |
488*406 |
2.44*12.29 |
|||
|
CELL-100-712 |
100 |
712 |
1.1 |
1.5 |
1420 |
508*475 |
2.56*13.72 |
|
CELL-150-712 |
150 |
2130 |
508*475 |
2.56*13.72 |
|||
|
CELL-200-712 |
200 |
2840 |
508*475 |
2.56*13.72 |
|||
Key Features & Benefits
1. Superior Load Distribution & Soil Reinforcement
The geocell's cellular design confines and stabilizes infill materials (such as gravel, sand, or soil), distributing loads evenly across a wider area. This significantly reduces vertical stress on the subgrade, preventing rutting, settlement, and surface deformation.
Enhances bearing capacity of weak or soft subgrades.
Minimizes differential settlement in roadways and embankments.
Ideal for heavy-traffic areas, including highways, parking lots, and industrial yards.
2. Effective Erosion Control & Slope Protection

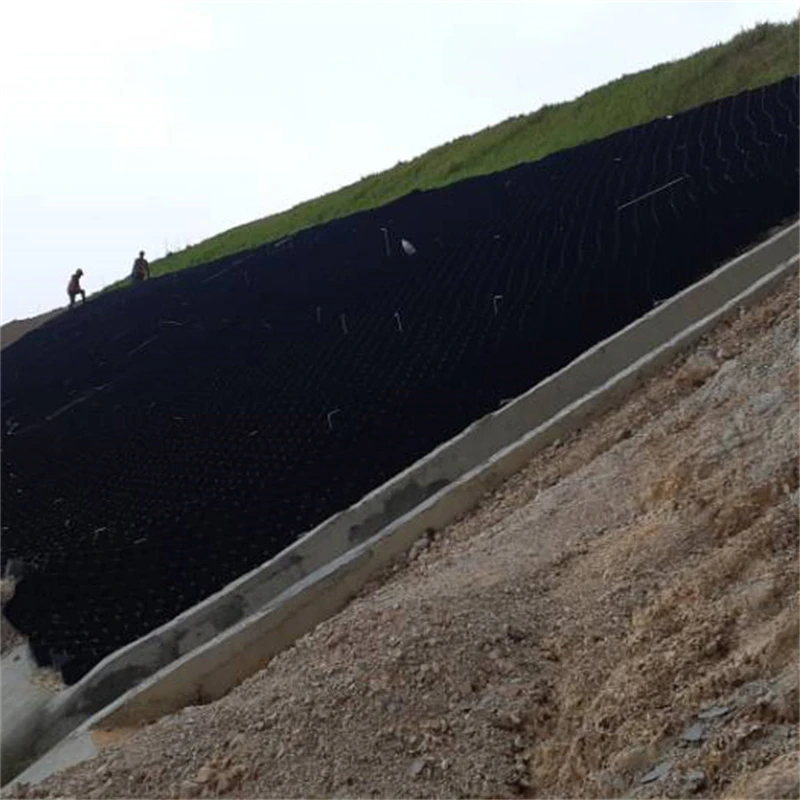

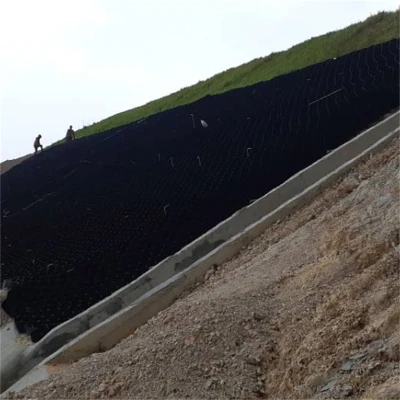

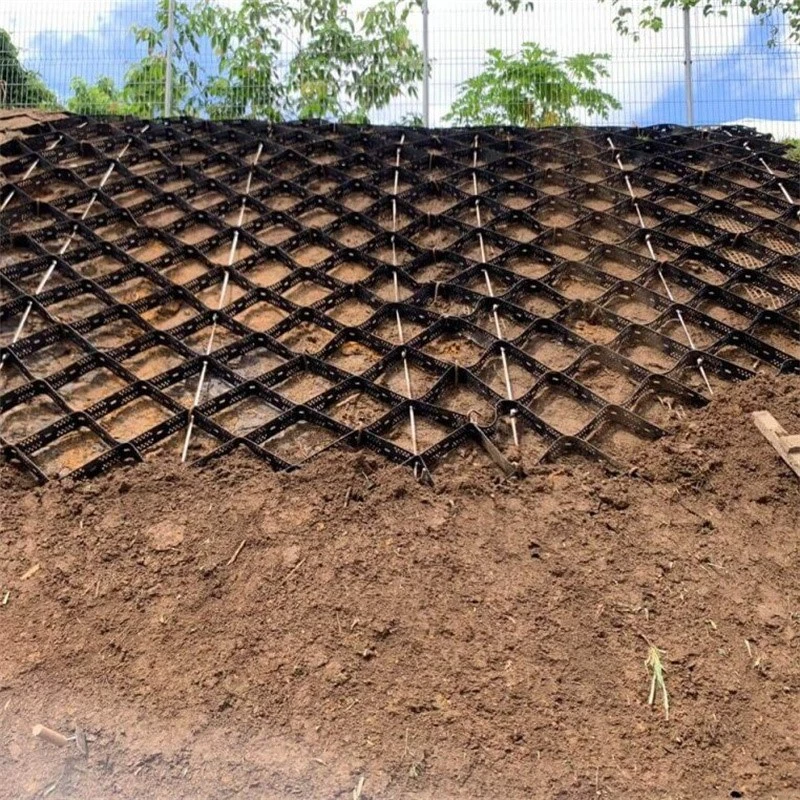

When installed on slopes or embankments, the 200mm Geocell Geogrid prevents soil erosion by securely holding vegetation and aggregate in place. Its deep cell walls (200mm height) provide excellent resistance against water flow, wind forces, and surface runoff.
Promotes vegetation growth for natural slope stabilization.
Reduces sediment loss in drainage channels and riverbanks.
Long-term erosion control without the need for frequent maintenance
3. Flexible & Easy Installation

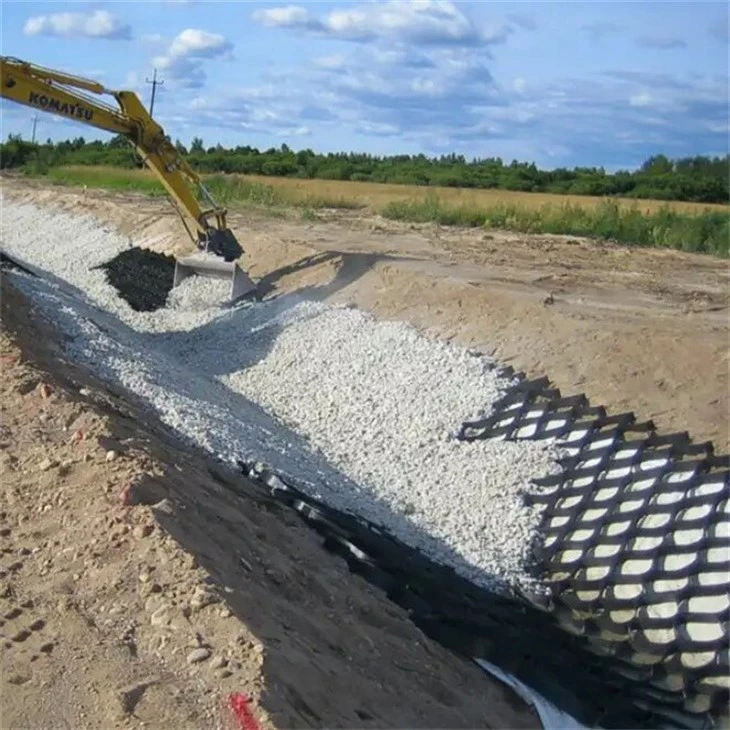

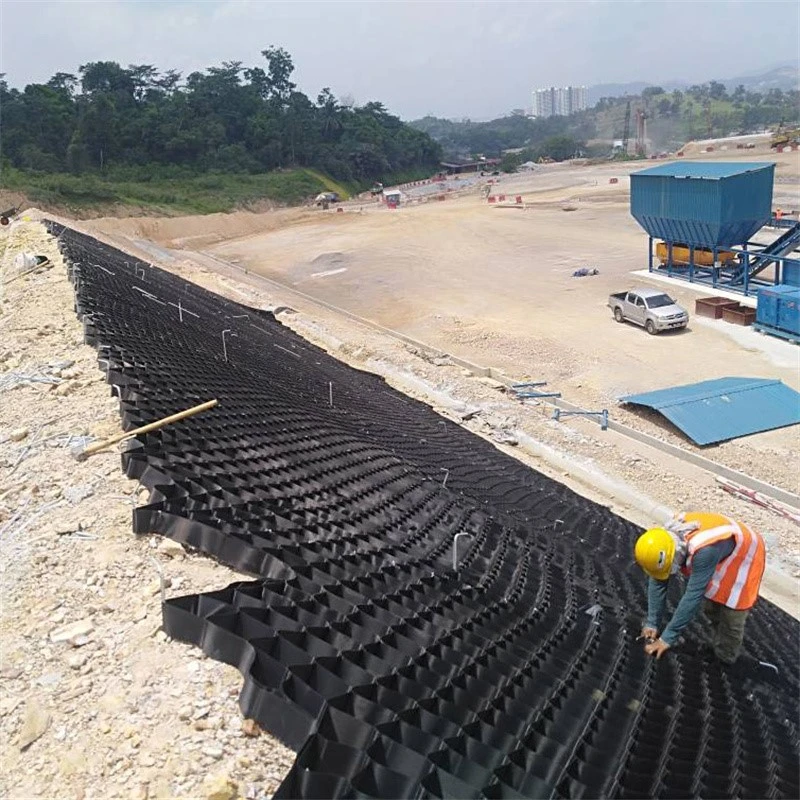

The geocell system is lightweight and modular, allowing for quick deployment with minimal labor and equipment. It can be expanded on-site and filled with locally available materials, reducing transportation costs and project timelines.
Adaptable to uneven terrain for seamless integration.
No specialized tools required – simple stake-and-fill method.
Cost-effective alternative to traditional concrete or riprap solutions.
Durable & Environmentally Friendly
Manufactured from high-density polyethylene (HDPE) or other robust polymers, the 200mm Geocell Geogrid is resistant to:
UV radiation – maintains strength under prolonged sun exposure.
Chemicals & moisture – suitable for harsh environments.
Extreme temperatures – performs in both freezing and high-heat conditions.
Additionally, the geocell promotes sustainable construction by reducing the need for non-renewable materials like concrete and asphalt.
Applications
1. Road & Pavement Construction
Subgrade stabilization for highways, rural roads, and airport runways.
Pavement base reinforcement to extend service life and reduce cracking.

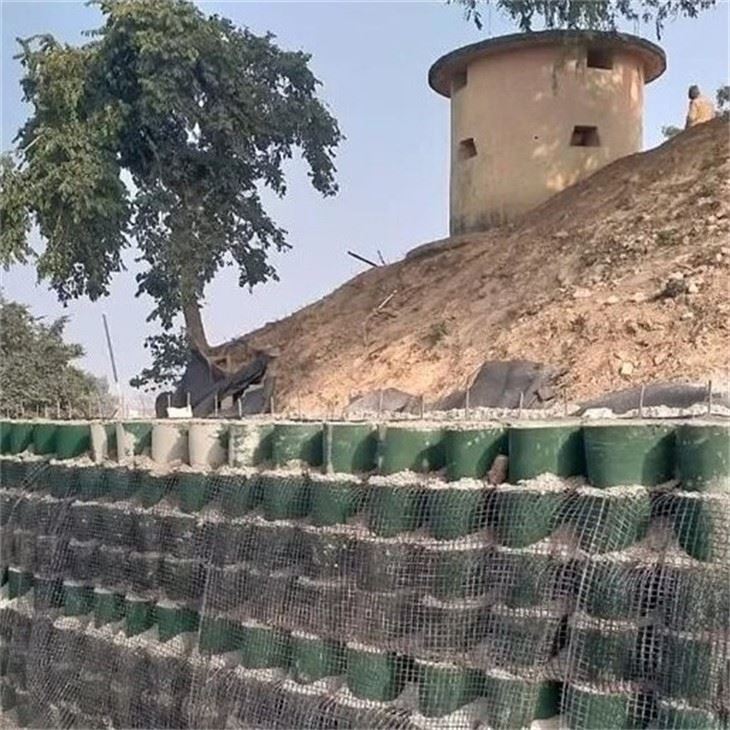

2. Retaining Walls & Embankments
Reinforced earth structures with improved structural integrity.
Steep slope reinforcement to prevent landslides.
3. Landscaping & Recreational Areas
Parking lots, sports fields, and pedestrian pathways.
Green roofs and garden terraces with controlled soil retention.
4. Shoreline & Riverbank Protection
Prevents scour and erosion in water-adjacent projects.
Supports aquatic vegetation for ecological restoration.
Why Choose Our 200mm Geocell Geogrid?
Proven Performance: Trusted by engineers for critical infrastructure projects.
Customizable Solutions: Available in various cell sizes, heights, and strengths.
Cost Savings: Reduces material usage and maintenance expenses over time.
Eco-Conscious Design: Supports green construction practices.Geocell Construction Met* Unfolding the geocell (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)* Fixing it with nail or connecting with the frame of stretcher.
FAQ
Q: What is a geocell?
A 3D honeycomb structure made from strong polymers, filled with soil or gravel to stabilize weak ground and prevent erosion.
Q: Where is it used?
Roads, slopes, retaining walls, landscaping, and shoreline protection.
Q: How is it different from geogrids?
Geocells provide 3D confinement (better load distribution and erosion control) vs. geogrids' flat reinforcement.
Q: What materials can fill a geocell?
Gravel (for roads), soil/sand (landscaping), or concrete (permanent structures).
Q: How long does it last?
20-50+ years, resistant to UV, chemicals, and extreme weather.
