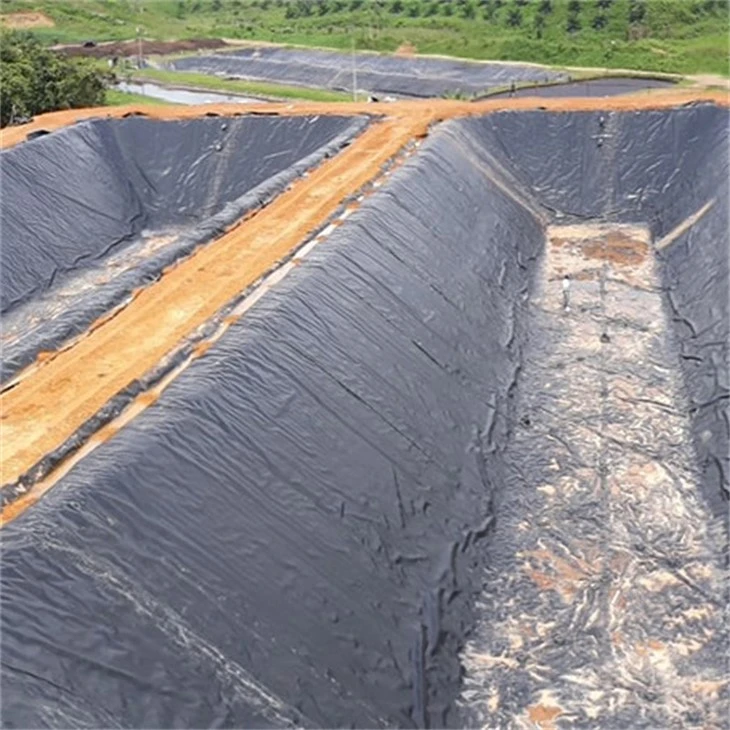

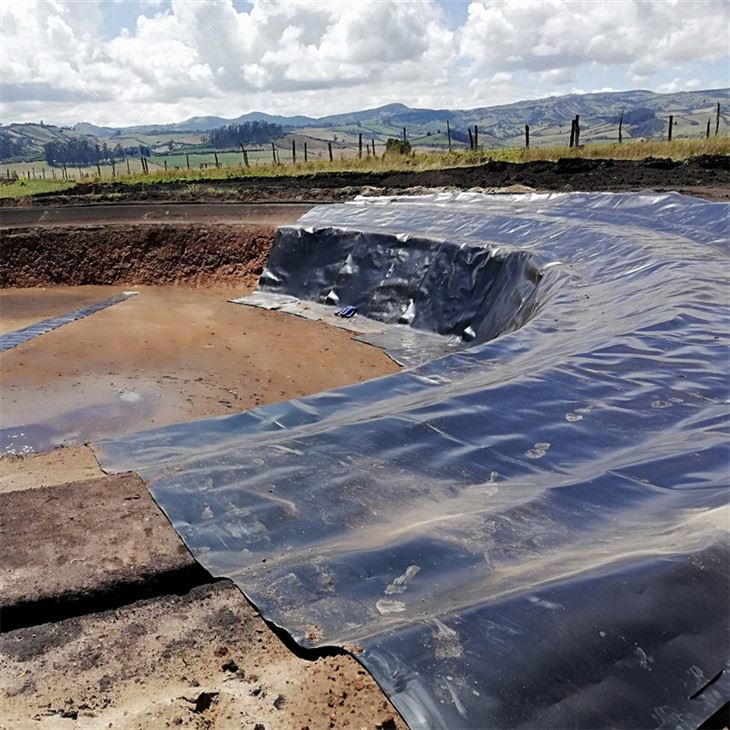

Gold mining heap leaching liner
Products Description
|
Tested Property |
Test Method |
Frequency |
Minimum Average Value |
|||||
|
Thickness, (minimum average) mm |
ASTM D 5199 |
every roll |
0.75 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
|
Density, g/cm3 |
ASTM D 1505 |
every 5th roll |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 |
0.94 |
|
Tensile Properties (each direction): |
||||||||
|
Strength at Break, N/mm-width |
ASTM D 6693, Type IV |
every 5th roll |
21 |
28 |
43 |
57 |
71 |
85 |
|
Strength at Yield, N/mm-width |
11 |
15 |
23 |
30 |
38 |
45 |
||
|
Elongation at Break, % |
G.L. 51 mm (2.0 in) |
700 |
700 |
700 |
700 |
700 |
700 |
|
|
Elongation at Yield, % |
G.L. 33 mm (1.3 in) |
13 |
13 |
13 |
13 |
13 |
13 |
|
|
Tear Resistance, N (lb) |
ASTM D 1004 |
every 5th roll |
93 (21) |
125 (28) |
187 (42) |
249 (56) |
311 (70) |
373 (84) |
|
Puncture Resistance, N (lb) |
ASTM D 4833 |
every 5th roll |
263(59) |
352(79) |
530(119) |
703(158) |
881(198) |
1,059 (238) |
|
Carbon Black Content, % |
ASTM D 1603 / D 4218 |
every 5th roll |
2.0-3.0 |
2.0-3.0 |
2.0-3.0 |
2.0-3.0 |
2.0-3.0 |
2.0-3.0 |
|
Notched Constant Tensile Load, hrs |
ASTM D 5397, Appendix |
90,000 kg |
400 |
400 |
400 |
400 |
400 |
400 |
|
Oxidative Induction Time, minutes |
ASTM D 3895, 200° C; O2, 1 atm |
90,000 kg |
>100 |
>100 |
>100 |
>100 |
>100 |
>100 |
|
TYPICAL ROLL DIMENSIONS |
||||||||
|
Roll Length, m |
280 |
210 |
140 |
105 |
85 |
70 |
||
|
Roll Width, m |
7.0/8.0 |
7.0/8.0 |
7.0/8.0 |
7.0/8.0 |
7.0 |
7.0 |
||
hdpe geomembrane for Gold mining heap leaching liner
The use of HDPE geomembrane for gold mining heap leaching liners is a vital solution to ensure the protection of the environment and the sustainability of the mining operations. The liner plays a critical role in containing the potentially harmful chemicals used in the mining process to avoid seeping into the surrounding areas.
HDPE geomembrane liners have numerous advantages, such as excellent chemical resistance, durability, flexibility, and ease of installation and maintenance. These liners also have a long lifespan and can withstand different climatic conditions, making them an ideal choice for gold mining heap leaching operations.
Moreover, HDPE geomembrane liners reduce the risk of contamination of the groundwater, which is a significant concern in mining operations. By preventing seepage of chemicals into water sources that may affect aquatic life and human health, the use of geomembrane liners is critical in promoting responsible mining practices.
Furthermore, the use of HDPE geomembrane liners reduces the environmental impact of mining activities, providing a sustainable and long-term solution for gold mining companies. The use of geomembrane liners helps in reducing the risk of soil and air pollution, which in turn, prevents environmental degradation.
Overall, the use of HDPE geomembrane liners for gold mining heap leaching operations is a positive development for the mining industry. The liner ensures the protection of the environment, reduces the risk of contamination of groundwater, and promotes sustainable mining practices. Therefore, the use of HDPE geomembrane liners is an excellent solution for gold mining companies to adopt.
Application
In Gold mining heap leaching, what materials used together with geomembrane
The process of gold mining heap leaching requires the use of a variety of materials to ensure a successful operation. One such material is a geomembrane, which is a synthetic lining that helps to prevent the leaching solution from seeping into the surrounding environment.
When used in conjunction with a geomembrane, gold mining companies typically use a range of materials such as:
Geotextile
This material acts as a cushion between the geomembrane and the ore heap. It prevents the puncturing of the membrane and ensures that the leaching solution is evenly distributed throughout the heap. Geotextile also allows for the proper drainage of the heap.
Crushed ore
The gold ore is crushed and then placed on top of the geomembrane lining to create a heap.
Leaching solution
A solution of cyanide or other chemicals is sprayed onto the ore to dissolve the gold.
Final Solution
Sprinklers
To ensure even distribution of the leaching solution, sprinklers are used to spray the solution over the top of the heap.
Activated carbon
After the gold has been dissolved, activated carbon is introduced to the heap. The carbon absorbs the dissolved gold from the solution.
A recovery system
Once the gold has been collected in the activated carbon, it is transported to a recovery system where it is separated from the carbon.
Our Advantage
What is heap leaching in gold mining?
Heap leaching is a common method of extracting gold from ore bodies near the surface. This is a simple technique that involves piling crushed ore on a pile and then pouring a liquid solution into the pile to extract the precious metals.
competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
The liquid solution used in heap leaching is usually a weak cyanide solution that dissolves gold particles in the ore. The pile is then left to sit for an extended period of time, usually several months, while the solution drips through the pile and collects in a reservoir at the bottom.
The advantages of heap leach in gold mining are many. First, it is a relatively simple and inexpensive method that requires little technical expertise or equipment. It is also very effective at extracting gold, with recovery rates as high as 90%.
Additionally, heap leaching is environmentally friendly. Rather than using toxic chemicals to extract gold like other mining methods, heap leaching uses a weak cyanide solution that biodegrades easily. Additionally, waste dumps are often located in remote areas, reducing potential impacts on local communities.
Overall, heap leaching is a popular and successful method for extracting gold from ore bodies near the surface. It is low cost, efficient and environmentally friendly, making it ideal for many gold mining operations.
Packing & Delivery
HDPE Geomembrane Packing and Delivery
1. The products are usually tied with packing tape.The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request.
3. Port: Qingdao, China.
FAQ
Q: 1.How is HDPE geomembrane manufactured?
Q: 2.What makes HDPE geomembrane ideal for gold mining heap leaching liner?
Q: 3.How does HDPE geomembrane protect the environment during gold mining heap leaching?
Q: 4. Is HDPE geomembrane easy to install?
Q: 5.How long will HDPE geomembrane last?
Q: 6. Is HDPE geomembrane safe for the environment?
Q: 7.What are the benefits of using HDPE geomembrane for gold mining heap leaching liner?
Q: 8.How can I ensure the best quality of HDPE geomembrane for my gold mining heap leaching liner?
