Geotube geotextiles are a unique geosynthetic material that has many applications in various industries. It is a high-strength woven or non-woven material designed to improve filtration efficiency, erosion control and soil stabilization in a variety of civil engineering projects. Although it may seem like ordinary fabric, it is actually a high-tech material that serves many functions in construction projects.
What Is Woven Geotextile Fabric?

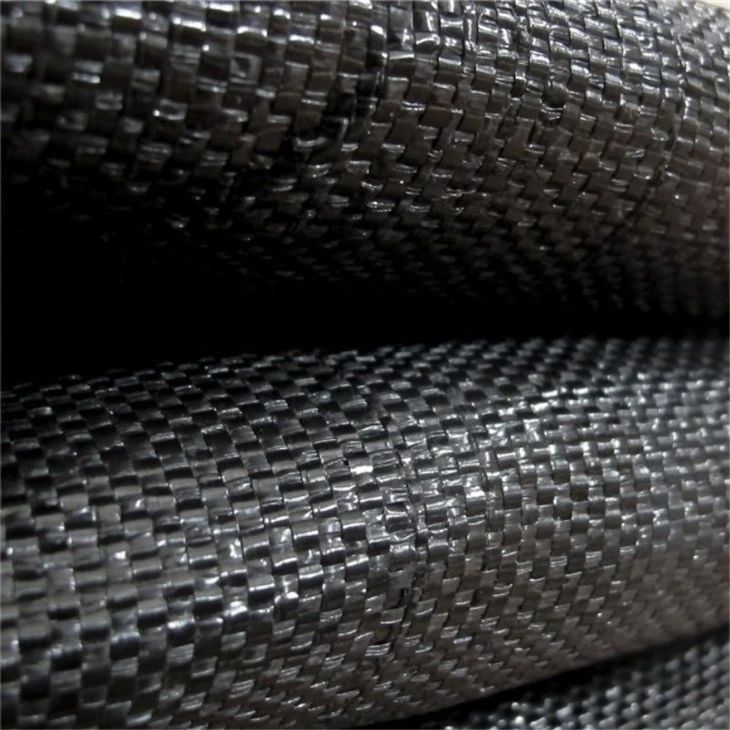

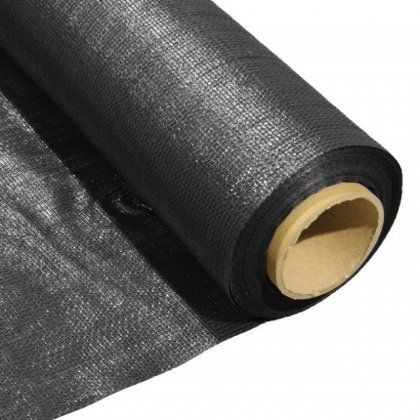

Essentially, woven geotextile is made by weaving individual strands on a loom to create a uniform length. Different materials such as cut films, fibrillated yarns and monofilaments can be used, but the weaving technique is constant regardless of the material used.
This ensures that the geotextile fabric is strong, making it an excellent choice for applications such as road construction, under sidewalks, residential streets and highways. Woven geotextiles are not as permeable, with a few exceptions, so they are not the best choice for drainage projects. Instead, they are excellent for long-term separation and reinforcement applications and resist corrosion.
Geotextile Geotube
Geotextile Geotube is a versatile geosynthetic material that is used in several applications, some of which are listed below:
Features & Benefits
1. High-strength: Geotextile Geotube is designed to offer high-strength and durability, which makes it ideal for use in applications that require resistance to harsh environmental elements.
2. Filtration: This geosynthetic material is designed to filter water and soil particles, prevent clogging and provide smooth drainage.
3. Moisture protection: It can be used to protect soil and other materials from moisture, which in turn helps prevent damage from erosion or other environmental factors.
4. Environmental compliance: Geotextile Geotube meets all the necessary environmental standards and regulations, making it a safe and eco-friendly choice.
Application
1. Erosion control: Geotube geotextiles are used to protect shorelines from erosion, reduce wave energy, and prevent damage from hurricanes and tropical storms.
2. Landfills: It is used in landfills to protect soil and prevent waste from leaching into groundwater.
3. Dewatering: Geotubes can be used to separate solids from water or to dewater sludge as part of a waste disposal process.
4. Construction: It can be used to reinforce embankments or to stabilize soil during excavation, thus increasing their stability.
Geotube Specification
│ SPECIFICATION │
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 | 85 | |
How to use Geotube
Geotube are easy to install and can be used for a variety of purposes. The installation process usually includes the following steps:
1. Decide on the size and shape of the Geotube based on your specific application.
2. Place the geotube where necessary and secure it with anchors or other means.
3. Fill the geotube with suitable material.
4. Once the geotube is filled, it can be compacted as needed.
Overall, Geotextile Geotube is a versatile and effective geosynthetic material that can be used in a variety of applications. Its unique properties make it an ideal choice for erosion control, soil stabilization and dewatering. When properly installed and maintained, Geotube can help improve the productivity and lifespan of a variety of construction projects.
Features & Benefits
Outstanding filtration characteristics with high tensile strength and low elongation
Extraordinary solution for subgrade stabilization and base reinforcement
High quality, durability and cost effectiveness
High quality and durability to ensure structure safety
High mechanical and filtration performance to enhance usage efficiency
Easy handling and installation to reduce construction time and costs
Cost-effective
Project for Geotube

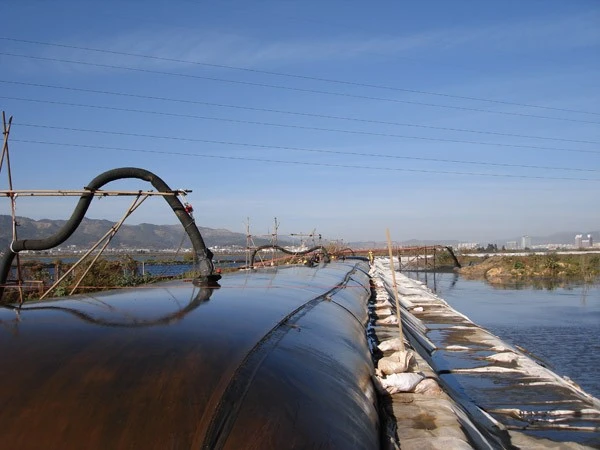

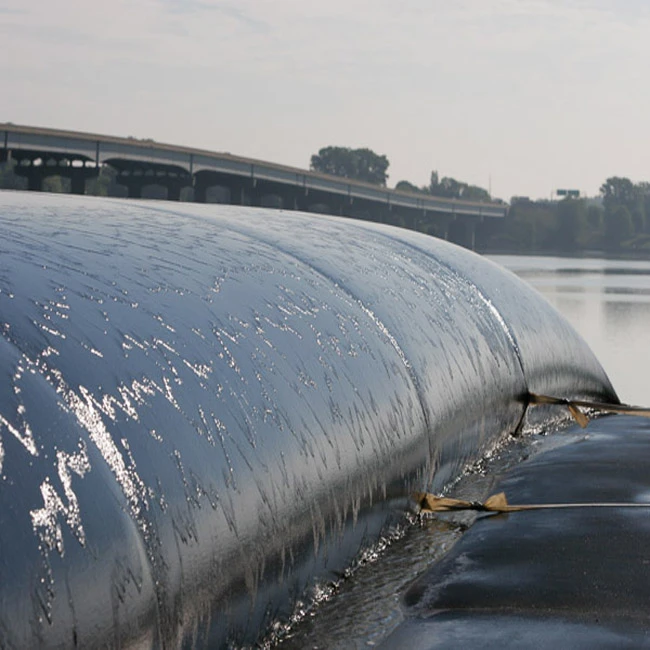

1. Riverbank Protection: Geotextile Geotube was used to protect the shoreline of a river from erosion caused by high tides and strong currents.

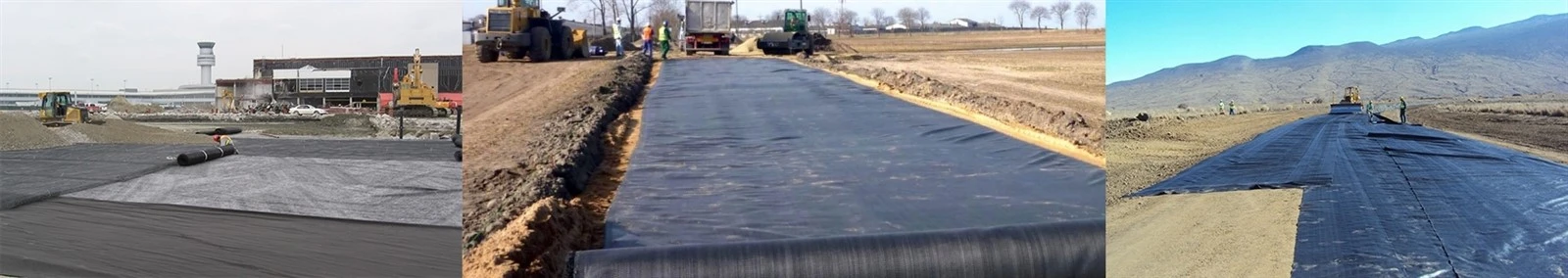

2. Soil Stabilization: It was used in highway construction to stabilize soft soil and prevent sinkholes from forming.

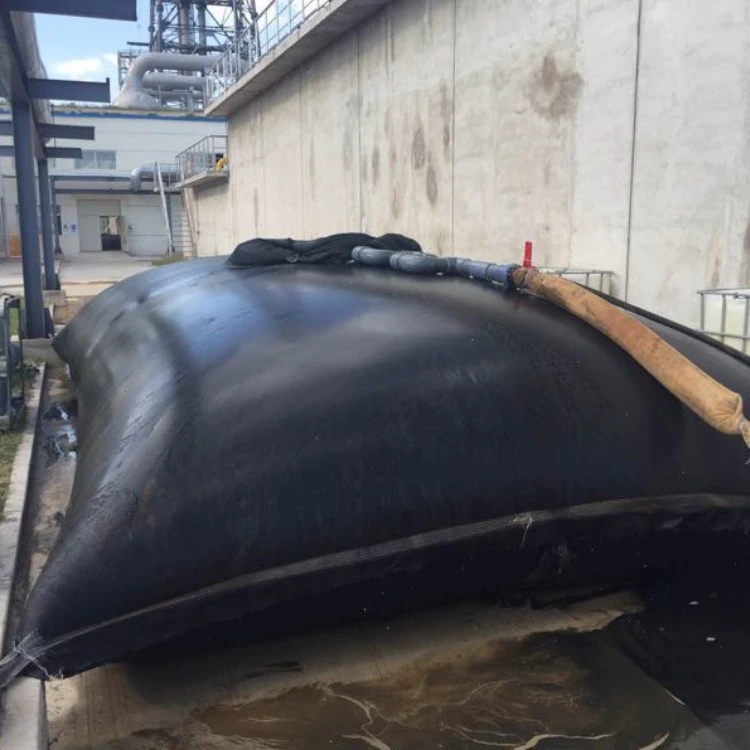

3. Sludge Dewatering: Geotube geotextiles have been used to dewater sludge in wastewater treatment plants as part of the waste disposal process.
