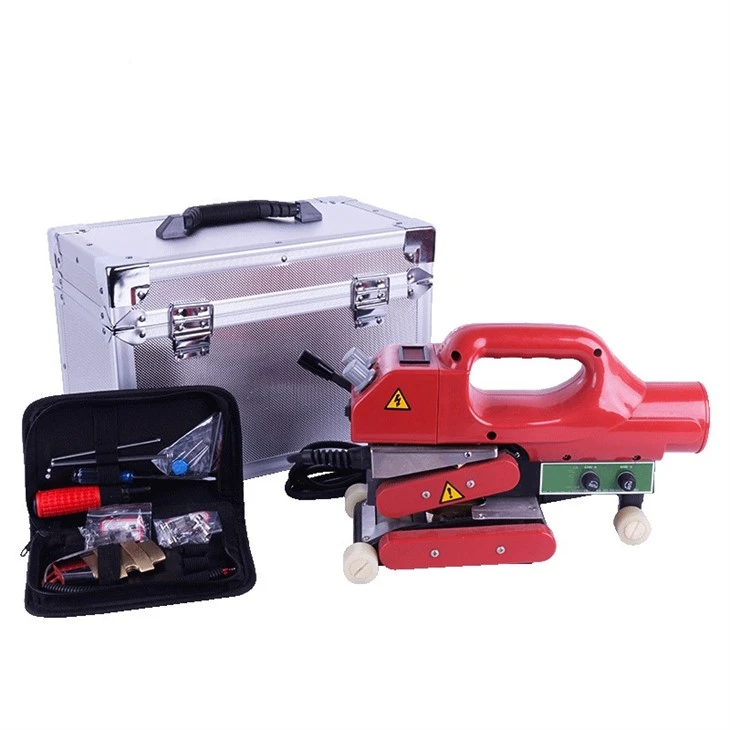

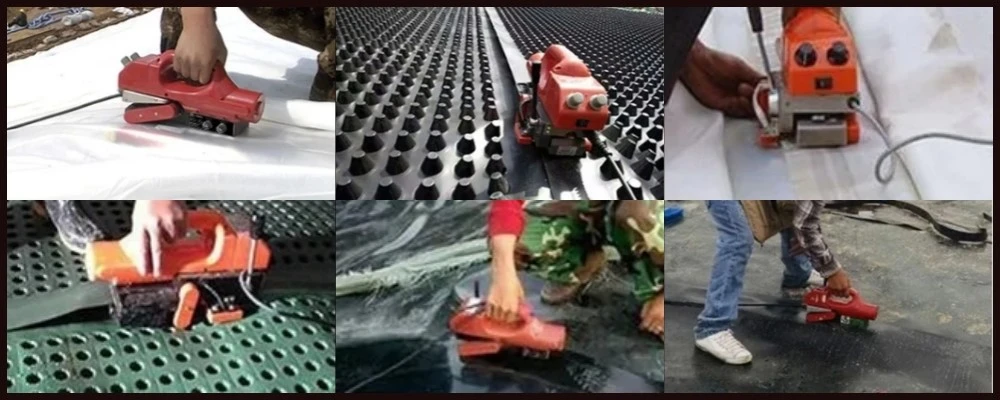

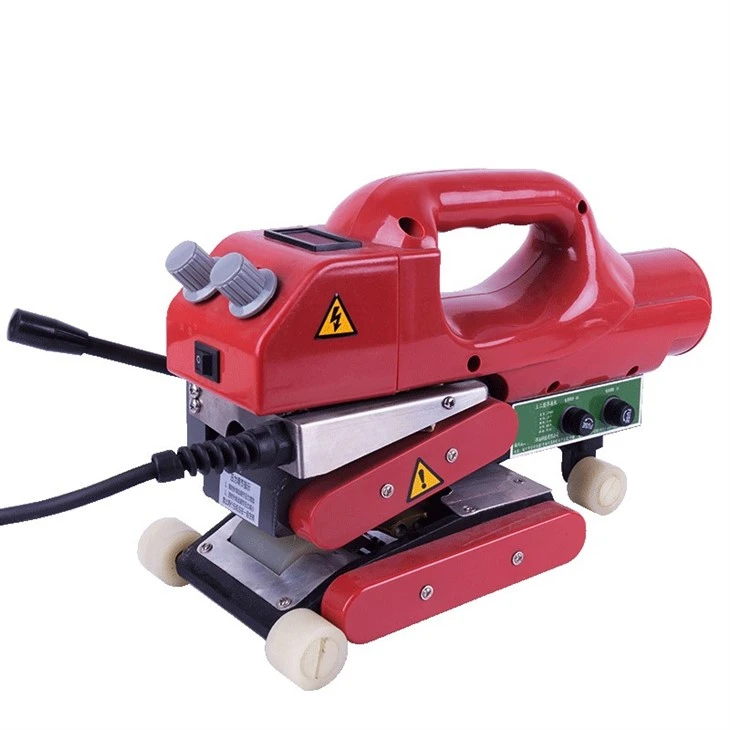

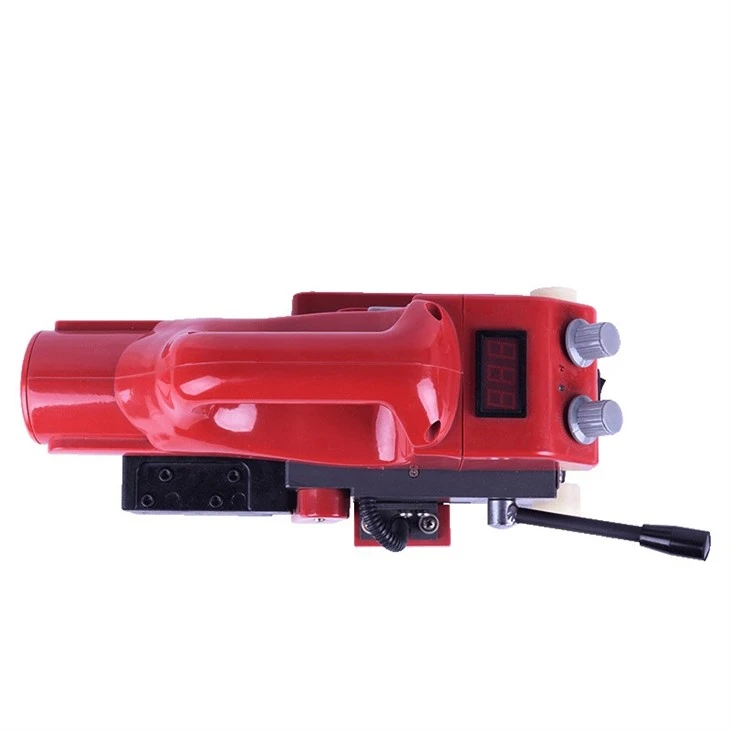

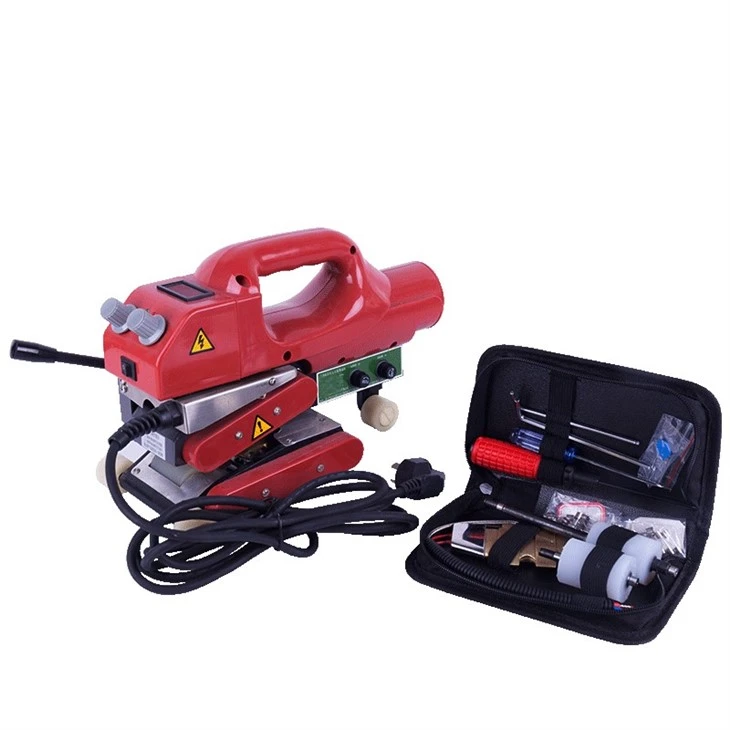

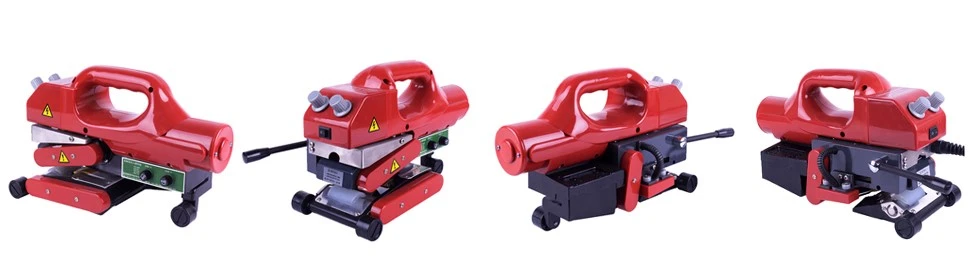

Geomembrane Welding Machine is a new welding machine for welding HDPE, LDPE, PE thermo plastic material ,which used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.
Products Description
PID Automatic Thermostatic Control: This advanced control system ensures precise temperature regulation with minimal fluctuations, resulting in consistent weld quality.
PWM Automatic Voltage Regulation Speed Circuit: This circuit automatically adjusts the voltage to maintain a constant speed, even under varying load conditions.
Direct Current Servo Motor Drive: This powerful motor provides high torque and stable performance, ensuring smooth operation and consistent welding speed.
Stable Performance: The machine's performance is unaffected by external temperature and voltage variations, ensuring reliable operation in diverse environments.
Excellent Performance and Easy Operation: The machine combines high welding speed with good work quality, making it user-friendly and efficient.
Extensive Applications: The machine is suitable for various engineering projects, including expressways, tunnels, reservoirs, and construction waterproofing.
Overall, the text highlights the advanced features and versatility of this series of welding machines, making them a valuable tool for various construction and engineering applications.
Geomembrane Welding Machine Tips
Pressure Roller Selection:
Membranes below 1.0 mm: Silica pressure roller is recommended for welding membranes with a thickness below 1.0 mm. This material provides the necessary pressure without damaging the thinner membrane.
Membranes above 1.0 mm: Steel pressure roller is recommended for welding membranes with a thickness above 1.0 mm. The increased strength of steel is necessary to apply sufficient pressure for thicker membranes.
Hot Wedge Selection:
PVC Membranes: For PVC membranes, the machine can weld thicknesses ranging from 0.2 mm to 2.0 mm. You can choose to assemble it with a steel hot wedge for optimal welding performance.
Any customized demands, you can ask us directly. We have professional technicians team.
Geomembrane welding machine Parameters
|
ITEM |
TECHNICAL PARAMETERS |
|
Voltage |
220V |
|
Frequency |
50/60Hz |
|
Power |
800W |
|
Welding speed |
0.5-5m/min |
|
Heating temperature |
0-450℃ |
|
Thickness of material to be welded |
0.2mm-1.5mm |
|
Overlap width |
10cm |
|
Welding width |
12.5mm×2, interior cavity 12mm |
|
Seam strength |
≥85% base material (tensile resistant in shear direction) |
|
Weight |
5Kg |
|
Insulation class |
class II |
Geomembrane Welding Machine Packing & shipping
Geomembrane welding machine Packing & Delivery
Size: 345(L) * 200(W) * 245 (H)
Weight: 8.5KG
Port: Qingdao Port, China

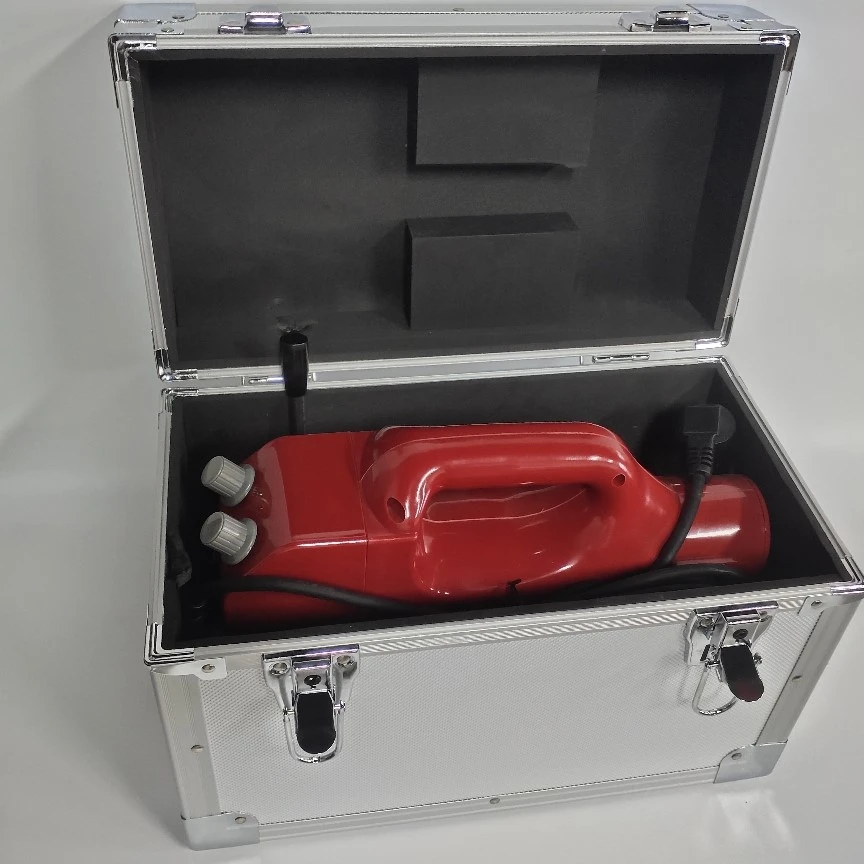

Packaging Details: Packing by aluminium box, if customers have the special requests, then we can do it as the customer's requests.
Feature
Geomembrane Welding Machines adopts advanced hot wedge structure, with high power, high speed and strong pressure force; suitable for 0.2-1.5mm thickness hot melt materials such as PE, PVC, HDPE, EVA, PP. This welder is extensively used in highway/railway tunnels, urban subway, aquaculture, water protection, chemical mining, refuse landfill, sewage treatment, waterproofing projects etc.
