Geomembrane Welding Machine is able to manufacture hot air or hot wedge welding systems designed for geomembrane liners, covers, geotextiles and more.
Products Description
Adopts advanced hot air heating system. With small, light and high speed, it perfects the welding quality even if corrosive materials and bad working environment. This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
Geomembrane welding machine Parameters
|
ITEM |
TECHNICAL PARAMETERS |
|
Voltage |
220V |
|
Frequency |
50/60Hz |
|
Power |
800W |
|
Welding speed |
0.5-5m/min |
|
Heating temperature |
0-450℃ |
|
Thickness of material to be welded |
0.2mm-1.5mm |
|
Overlap width |
10cm |
|
Welding width |
12.5mm×2, interior cavity 12mm |
|
Seam strength |
≥85% base material (tensile resistant in shear direction) |
|
Weight |
5Kg |
|
Insulation class |
class II |
Geomembrane Welding Machine Tips
1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.
2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.
3. If the material is PVC, this model can weld from 0.2-2.0mm, and you can choose to assemble it with steel hot wedge.
4. Any customized demands, you can ask us directly. We have professional technicians team.
Geomembrane Welding Machine Packing & shipping
Geomembrane welding machine Packing & Delivery
Size: 345(L) * 200(W) * 245 (H)
Weight: 8.5KG
Port: Qingdao
Packaging Details: Packing by aluminium box, if customers have the special requests, then we can do it as the customer's requests.

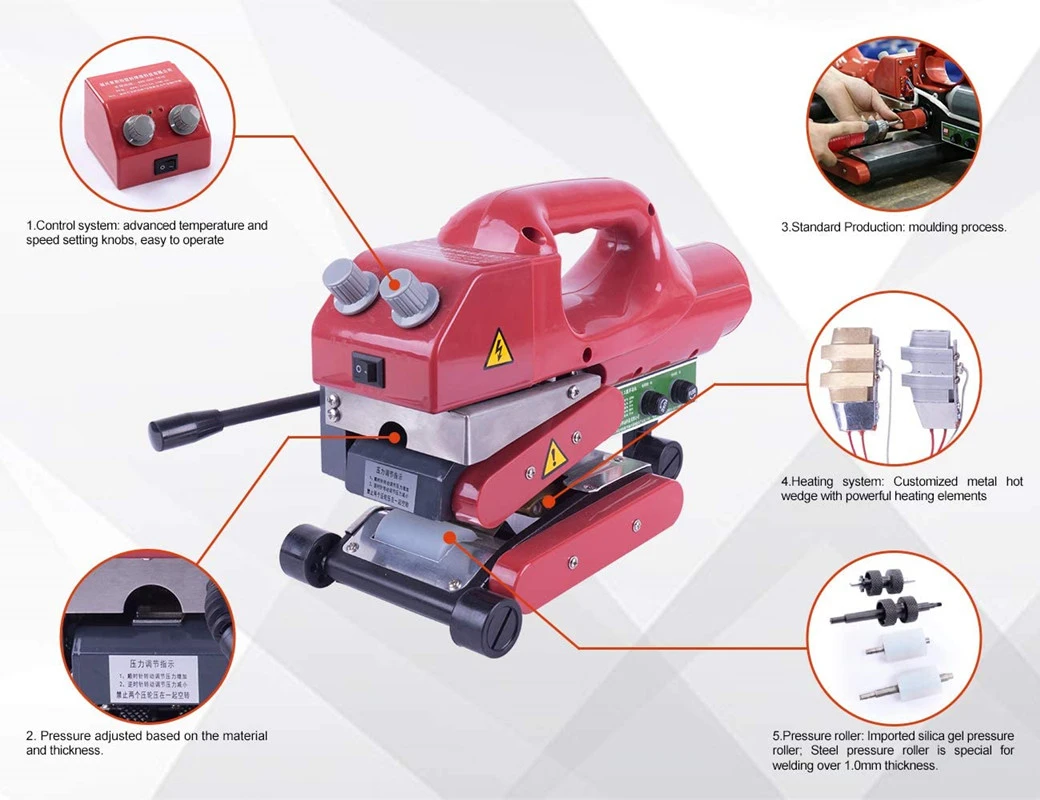

Feature
1.For welding PE, PP,PVC,EVA,ECB and other hot melt geomembranes.
2.The welding machine has an automatic continious temperature PID control.
3.The weldding machine has invariable speed during climbing slope, the vertical vertical climbing.
4.the performance is steady,easy to operate, high speed welding with excellent quality.
For material such as LDPE, PVC, HDPE, EVA, PP and PVC, HDPE, EVA, PP

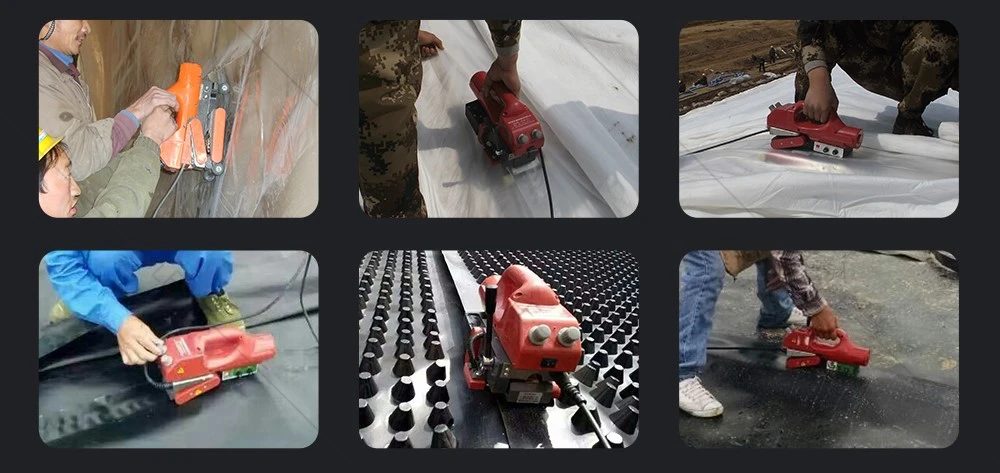

Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project,lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project,minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing project etc.
