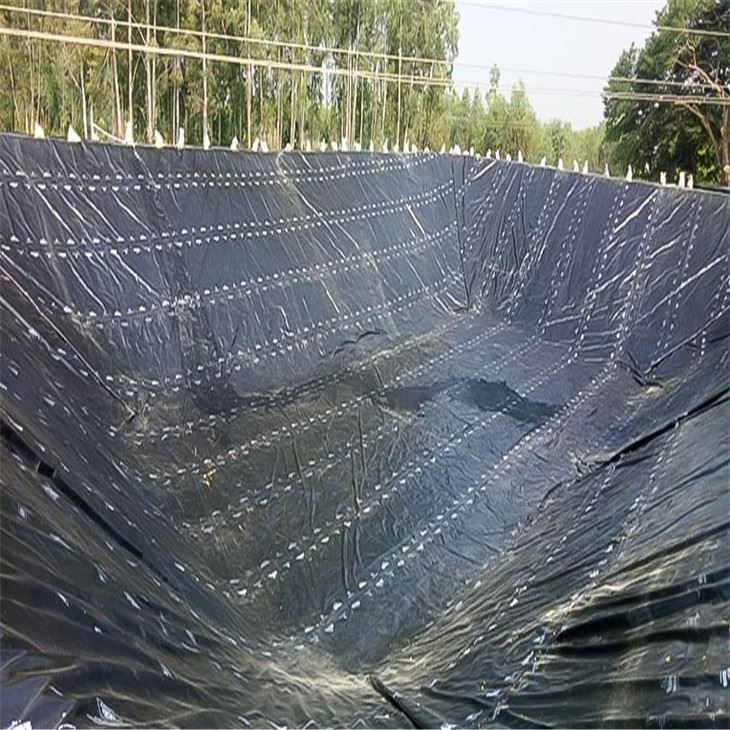

Liner For Spirulina Tank

Name: Liner For Spirulina Tank - China Liner For Spirulina Tank Manufacturers Suppliers Factory - Ruiheng Building Materials
Brand: Ruiheng
SKU: 280273376

Using geomembranes as linings for spirulina ponds is a very effective and increasingly popular option, especially for medium- to large-scale farms.

Send Inquiry

Description

Products Description

Using geomembranes as linings for spirulina ponds is a very effective and increasingly popular option, especially for medium- to large-scale farms.

different thicknesses of Geomembranes Test		Unit	Standard	Test Frequency	RH75	RH10	RH15	RH20	RH30
Mechanical Properties	Thickness	mm	D5199	per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000 kg	0.94
	Tensile Properties		D 6693
	· yield strength	kN/m	Type IV	9,000 kg	11	15	22	29	44
	· break strength	kN/m			20	27	40	53	80
	· yield elongation	%			12	12	12	12	12
	· break elongation	%			700	700	700	700	700
	Tear Resistance	N	D 1004	20,000 kg	93	125	187	249	374
	Puncture Resistance	N	D 4833	20,000 kg	240	320	480	640	96

Using geomembranes as linings for spirulina ponds is a very effective and increasingly popular option, especially for medium- to large-scale farms. Compared to rigid tanks or concrete ponds, it offers a cost-effective and highly customizable solution.

Why use geomembranes for spirulina ponds?

Cost-Effectiveness: For large-scale cultivation, using geomembranes is significantly less expensive than building concrete tanks or purchasing multiple rigid plastic or fiberglass ponds.

Customizable and Scalable: You can build ponds of nearly any size and shape based on existing land (although flumes are the most common). Expansion is also relatively easy; simply dig another pond and line it.

Durability: High-quality geomembranes, such as high-density polyethylene (HDPE), are UV-resistant, chemically stable, and puncture-resistant, offering a long service life (over 20 years).

Smooth Surface: A smooth surface prevents algae from attaching to the pond walls, making it easier to clean and minimizing harborage for contaminating bacteria or protozoa.

Waterproof: Provides a perfect barrier to prevent water loss and seepage, and protects groundwater from nutrient-rich overflow contamination.

Installation Speed: Excavation and installation of lined ponds are much faster than the construction and maintenance of concrete ponds.

Material Advantages

HDPE (high-density polyethylene) is the most common choice. It offers excellent chemical resistance, high UV stability, strong puncture resistance, and a long lifespan. Food-grade materials are also available. However, it can be stiff and difficult to install in complex shapes; seams require specialized welding. Suitable for large, permanent outdoor runway ponds. The industry standard for professional operation.
