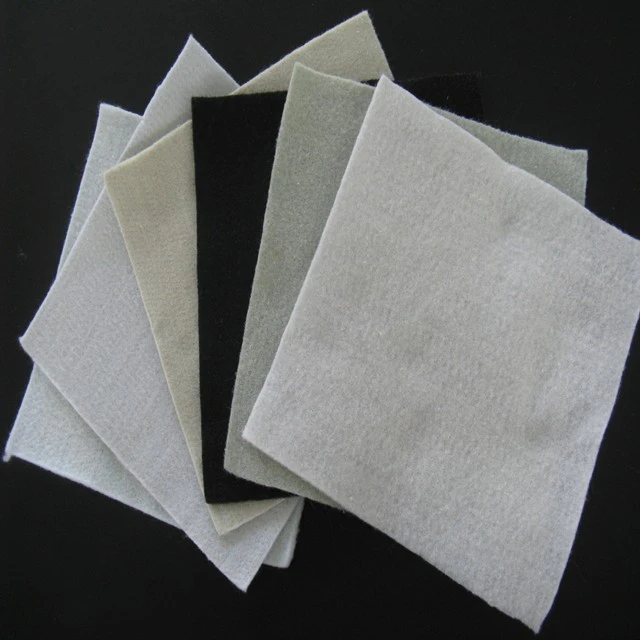

Non-woven geotextiles are multifunctional fabrics with a felt-like appearance. The main functions of these products are filtration and separation.
What is Needle Punched Nonwoven Geotextile?
Needle-punched nonwoven geotextile is a geotextile widely used in various civil engineering projects. It is made of synthetic material and processed through needle punching technology to form a non-woven fabric.
One of the main advantages of this geotextile is its ability to provide excellent filtration and drainage properties. It can effectively separate different layers of soil or aggregate and prevent materials from mixing, thus improving the overall stability and durability of the project.
In addition, needle punched nonwoven geotextiles have high tensile strength and are able to withstand heavy loads. It also resists damage from UV exposure, moisture or other environmental factors, making it a reliable and long-lasting solution.
Overall, needlepunched nonwoven geotextiles are important materials for the construction industry, helping to improve the safety and performance of various infrastructure projects. Its unique properties ensure outstanding support and protection even in the most challenging environments.
|
Gram weight |
Thickness(mm) |
Breaking strength(kn/m) |
CBR burst strength(KN) |
Elongation at break(% |
Tear Strength(KN) |
Sieve size O99(O35)mm |
|
100 |
0.9 |
2.5 |
0.3 |
25-100 |
0.08 |
0.07-2.0 |
|
150 |
1.3 |
4.5 |
0.6 |
25-100 |
0.12 |
0.07-2.0 |
|
200 |
1.7 |
6.5 |
0.9 |
25-100 |
0.16 |
0.07-2.0 |
|
250 |
2.1 |
8 |
1.2 |
25-100 |
0.2 |
0.07-2.0 |
|
300 |
2.4 |
9.5 |
1.5 |
25-100 |
0.24 |
0.07-2.0 |
|
350 |
2.7 |
11 |
1.8 |
25-100 |
0.28 |
0.07-2.0 |
|
400 |
3 |
12.5 |
2.1 |
25-100 |
0.33 |
0.07-2.0 |
|
450 |
3.3 |
14 |
2.4 |
25-100 |
0.38 |
0.07-2.0 |
|
500 |
3.6 |
16 |
2.7 |
25-100 |
0.42 |
0.07-2.0 |
|
600 |
4.1 |
19 |
3.2 |
25-100 |
0.46 |
0.07-2.0 |
|
800 |
5 |
25 |
4 |
25-100 |
0.6 |
0.07-2.0 |
Does Needle Punched Nonwoven Geotextile have a good drainage capability?
Needle punched nonwoven geotextile is designed to allow water to pass through it easily, while also retaining soil and other materials. Its unique construction, which involves the use of millions of tiny needle punches, creates a highly permeable and durable fabric that can withstand even the harshest environmental conditions.
The key to the superior drainage capability of needle punched nonwoven geotextile is its high void space. This is the space between the fibers in the fabric, which allows for efficient flow of water and air. Because the fabric is made up of millions of small fibers, the void space is maximized, allowing for rapid drainage even in the presence of heavy rainfall or flooding.
Another important factor contributing to the good drainage capability of needle punched nonwoven geotextile is its resistance to clogging. Unlike other materials used in construction, such as gravel or sand, needle punched nonwoven geotextile does not become clogged and obstructed over time. This means that it can continue to effectively drain water even in the long term, reducing the risk of costly and disruptive maintenance or replacement.

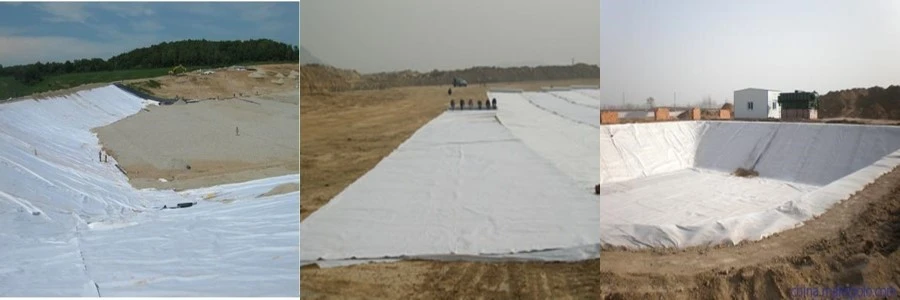

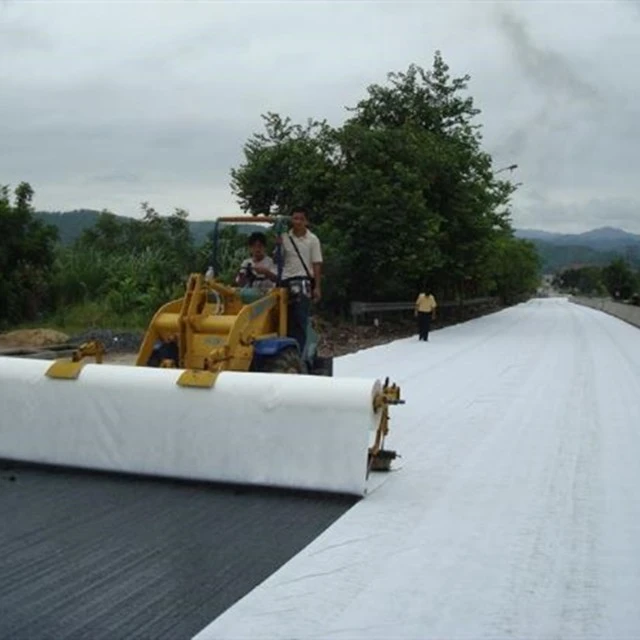

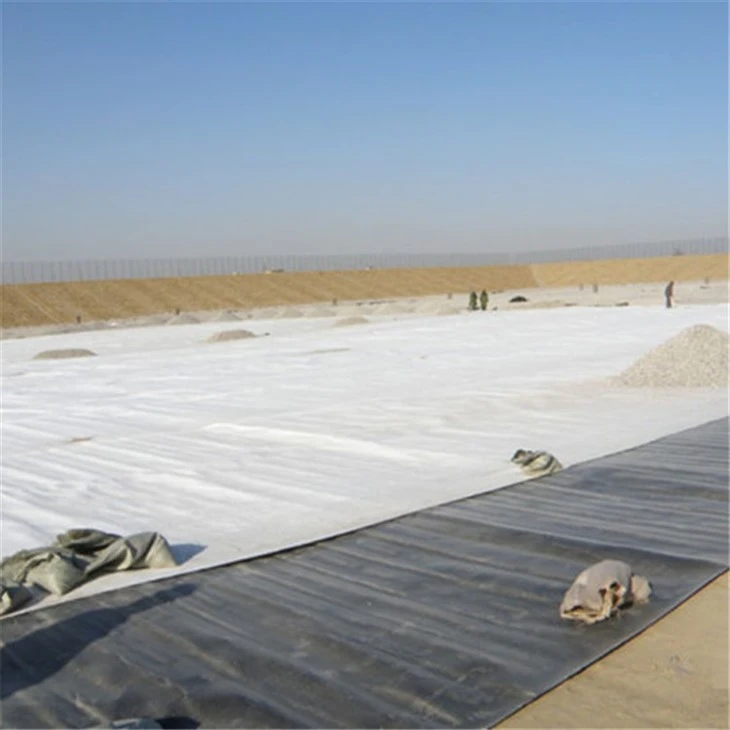

Needle punched nonwoven geotextile is widely used in a variety of geotechnical applications where drainage is critical. For example, it is commonly used in road construction to reinforce the subgrade and prevent water from accumulating beneath the pavement. It is also used in retaining walls, where it helps to prevent seepage and maintain stability. Additionally, it is used in areas prone to erosion, such as riverbanks and coastlines, where it helps to stabilize the soil and prevent sediment from flowing into waterways.
Needle Punched Nonwoven Geotextile VS. woven geotextile
As construction materials, geotextile are widely used to enhance the stability and performance of soil structures. Two common types of geotextiles are needle-punched nonwoven geotextile and woven geotextiles. Although they look similar, they have distinct differences that make them suitable for certain applications.
Needle-punched nonwoven geotextiles are made from synthetic fibers that are mechanically interlocked through a needling process. The result is a nonwoven fabric with high permeability, tensile strength and durability. It is commonly used in applications such as road and railway construction, erosion control and drainage systems. Needle-punched nonwoven geotextiles have better filtration properties than woven geotextiles and do not lose strength over time.
Woven geotextiles, on the other hand, are made by weaving synthetic yarns together in a specific pattern, creating a fabric with high tensile strength. These geotextiles are used in applications such as soil slope stabilization, coastal protection, and subgrade soil stabilization. Woven geotextiles have excellent load distribution and high puncture and tear resistance, making them ideal for heavy-duty applications.
In summary, both needle-punched nonwoven geotextiles and woven geotextiles have their own unique properties and applications. Choosing the right geotextile for your project is critical to ensuring optimal performance and longevity. By understanding the differences between the two types of geotextiles, you can make an informed decision to meet the specific needs of your project.
Is Needle Punched Nonwoven Geotextile biodegradable?
First and foremost, Needle Punched Nonwoven Geotextile is not inherently biodegradable, as it is made of synthetic materials such as polypropylene or polyester fibers, which are non-biodegradable. This means that if it is left in the environment, it will not naturally decompose or disintegrate for a long time, potentially causing harm to the ecosystem.
However, there are some ways to make Needle Punched Nonwoven Geotextile more environmentally friendly. One option is to use biodegradable materials to produce it, such as biopolymers or natural fibers. Though these materials may not have the same properties as their synthetic counterparts, they can still offer sufficient strength and functionality to meet the requirements of geotextiles.
Another option is to add biodegradable additives to the synthetic material during production. These additives can accelerate the degradation process of the geotextile by breaking down the polymer bonds and making it more susceptible to microbial activity and natural decay. However, it is important to note that the effectiveness of these additives may depend on the specific conditions of the environment, such as temperature, moisture, and pH levels.
Moreover, Needle Punched Nonwoven Geotextile can also be recycled or upcycled after its useful life is over. Recycling involves collecting and processing the waste material into new products, while upcycling involves transforming the waste material into new, higher-value products. Both methods can help reduce the amount of waste generated by the geotextile industry and conserve natural resources.
In addition, the proper disposal of Needle Punched Nonwoven Geotextile can also minimize its environmental impact. This means that the geotextile should be disposed of in a responsible and legal way, such as through landfilling, incineration, or recycling programs. It should not be littered, dumped, or left in the environment, as this can harm wildlife, contaminate water sources, and cause aesthetic problems.
Overall, Needle Punched Nonwoven Geotextile may not be biodegradable in its traditional form, but there are ways to make it more sustainable and eco-friendly. By using biodegradable materials or additives, recycling or upcycling waste, and properly disposing of the geotextile, we can reduce its environmental impact and improve the health of our planet.
Furthermore, Needle Punched Nonwoven Geotextile is still a valuable tool in many civil engineering and environmental projects. Its high-strength properties, water permeability, and filtration capabilities make it an essential component in road construction, landfills, erosion control, and other applications. Without geotextiles, these projects would be more costly, time-consuming, and less effective.
Therefore, it is important to recognize the benefits of Needle Punched Nonwoven Geotextile while also being mindful of its environmental impact. As we continue to develop new technologies and materials, we can strive to make geotextiles more sustainable and biodegradable, without sacrificing their functionality and effectiveness.
In conclusion, Needle Punched Nonwoven Geotextile is not biodegradable in its traditional form, but there are ways to improve its environmental performance. By using biodegradable materials or additives, recycling or upcycling waste, and properly disposing of the geotextile, we can minimize its impact on the environment. At the same time, we can appreciate the benefits that geotextiles bring to civil engineering and environmental projects and continue to innovate towards a more sustainable future.
Can neddle punched nonwoven geotectile be use in high temperature environment?
Firstly, it is important to understand what is meant by a high-temperature environment. Generally, any environment that exceeds a temperature of 60°C can be considered high temperature. Needle punched nonwoven geotextile is commonly used in applications such as road construction, erosion control, landfills, and drainage systems, where it may be exposed to varying temperatures. Therefore, it is crucial to determine whether the material can sustain its properties and perform its functions under high-temperature conditions.
The good news is that needle punched nonwoven geotextile is highly resistant to elevated temperatures. It has a melting point of above 200°C, which means that it can withstand high temperatures without losing its structural integrity or becoming deformed. This makes it suitable for use in applications where it is exposed to direct sunlight or elevated temperatures due to nearby heat sources, such as industrial facilities and pipelines.
In addition, the needle punched nonwoven geotextile is also resistant to thermal degradation. This means that it does not break down or weaken when exposed to high temperatures over a prolonged period. This property is important in applications where the material is expected to have a long service life, such as erosion control or soil stabilization. The material can be expected to maintain its strength and durability, even under the most extreme conditions.
However, it is important to note that the temperature tolerance of the needle punched nonwoven geotextile may vary depending on the type of fiber used to manufacture the material. Polypropylene fibers, for instance, have a lower melting point and may not be suitable for use in applications where the temperature exceeds 100°C. Polyester fibers, on the other hand, can withstand much higher temperatures and are therefore more suitable for use in high-temperature environments.
It is also important to consider the installation and application of needle punched nonwoven geotextile in high-temperature environments. The material should be handled with care during installation to avoid any damage or deformation. The material should also be protected from direct sunlight or sources of heat during storage and transport to prevent any premature degradation. The manufacturer's instructions should be followed carefully to ensure that the material is installed correctly and will perform its intended function under high-temperature conditions.
