The Fabric-Formed Concrete Mattress represents a revolutionary approach to erosion control and slope stabilization. Its flexibility, durability, and environmental friendliness make it an excellent alternative to traditional rigid concrete and riprap solutions.
Whether used in marine, riverine, or urban applications, the Fabric-Formed Concrete Mattress delivers long-lasting performance with minimal environmental impact. For engineers, contractors, and environmental planners, this technology offers a cost-effective and sustainable solution to modern infrastructure challenges.
Fabric Formed Concrete Mattress Specification
│ SPECIFICATION │
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 |
85 |
|
Features & Benefits
Flexible and Adaptable Design
Follows the Terrain: The fabric mold allows the concrete to conform to the shape of the underlying surface, ensuring a perfect fit.
Reduces Stress Points: Rigid joints are eliminated, reducing the risk of stress cracking.
01
High Durability and Strength
Reinforced Concrete Matrix: Designed with high-performance concrete (HPC) or fiber-reinforced concrete (FRC) for enhanced strength.
Erosion and Abrasion Resistance: Withstands water flow, wave action, and soil movement.
02
Cost-effective installation
Lightweight before curing: Easier to transport and handle than precast concrete panels.
Fast deployment: Can be cast on-site or precast for quick installation.
.
03
Wide Range of Applications

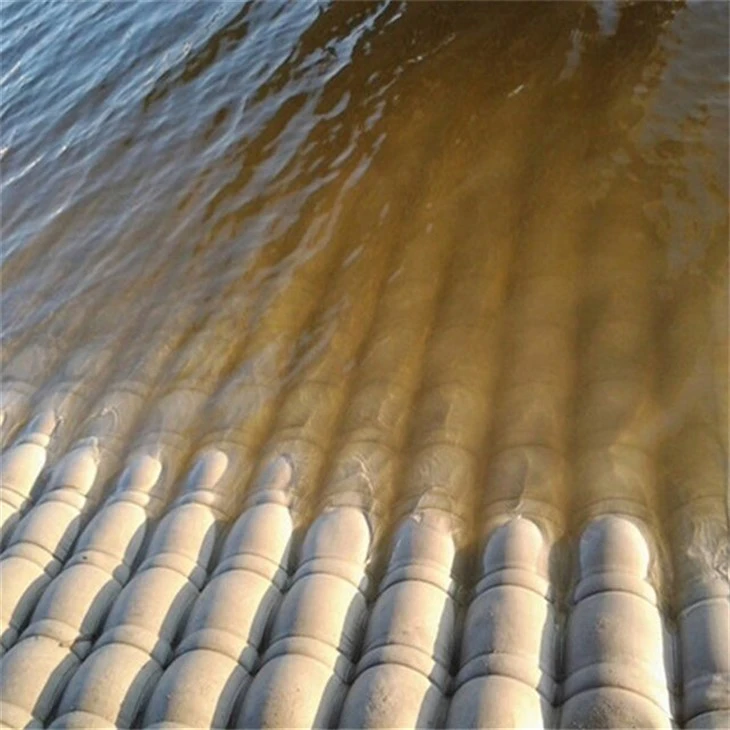

River and Coastal Protection: Prevents scour and erosion.

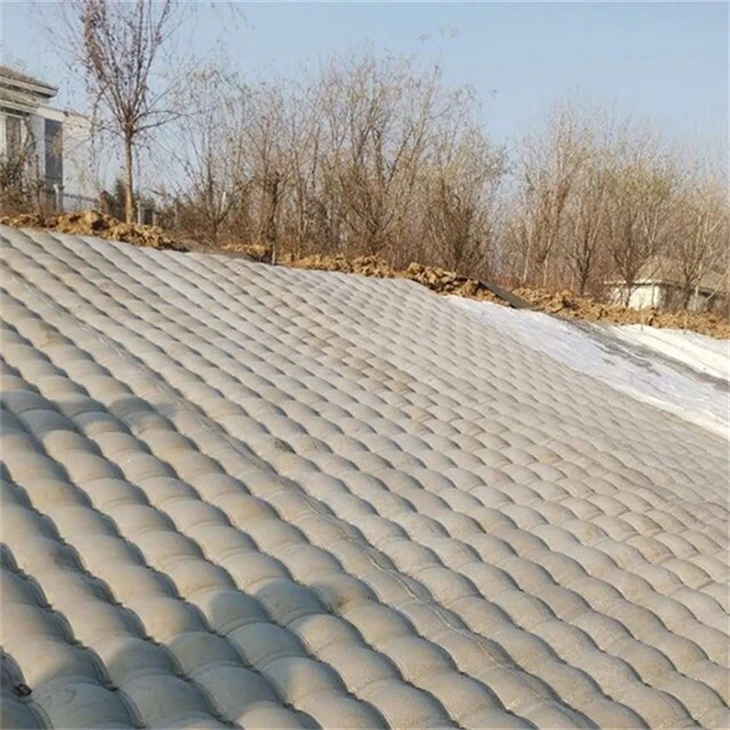

Slope and Bank Stabilization: Strengthens unstable soil structures.
Infrastructure Projects: Used in culverts, drains, and bridge abutments.
04
Project for Fabric Formed Concrete Mattress
1. Coastal and Marine Protection
Seawalls and revetments: Dissipate wave energy.
Breakwaters and groynes: Reduce sediment loss and shoreline erosion.
2. River and Channel Stabilization

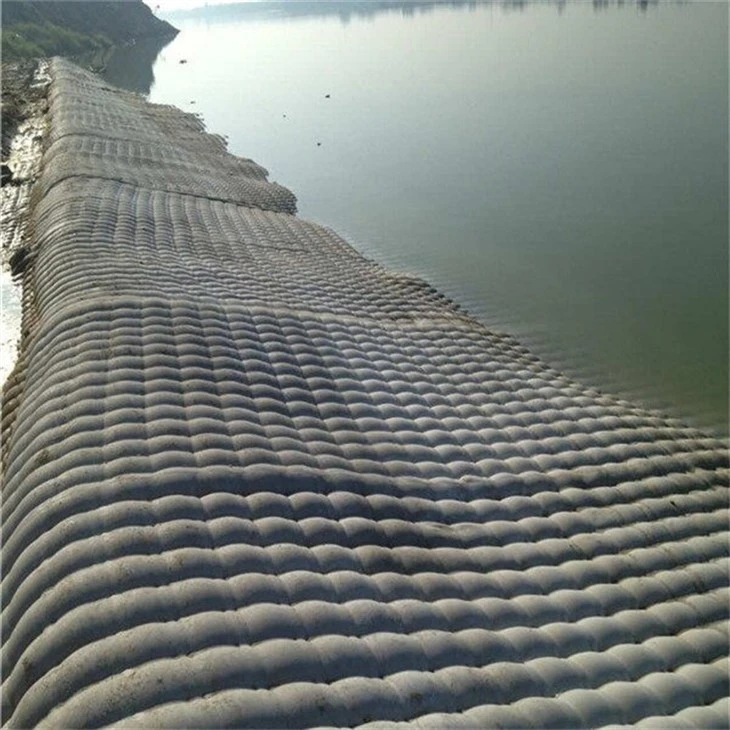

Riverbank reinforcement: Prevent bank incision and collapse.
Scooter prevention: Protect bridge piers and pipelines.
3. Infrastructure and Urban Development
Drains: Improve water flow efficiency and prevent erosion.
Retaining walls: Provide flexible yet robust support for slopes.
4. Environmental Restoration
Wetland and riparian zone protection: Support vegetation growth and prevent erosion.
Mine reclamation: Stabilize disturbed land surfaces.
Case Studies and Real-World Examples
1. Dutch Coastal Defense
Project: Erosion Control along the North Sea.
Results: FFCM reduced wave impact forces by 30% compared to traditional concrete barriers.
2. Canadian Riverbank Reinforcement
Project: Fraser River Bank Protection.
Results: No erosion observed after 5 years, and vegetation has regrown.
3. Singapore Urban Drainage
Project: Stormwater Drain Reinforcement.
Results: Improved drainage efficiency, no cracking after heavy rain.
