In an era where environmental sustainability and infrastructure resilience are paramount, the Sand Beach Geobag emerges as a revolutionary solution for erosion control, slope stabilization, and ecological restoration. Crafted from high-performance woven geotextile fabric, these geo bags provide an eco-friendly, durable, and cost-effective alternative to traditional hard engineering methods like riprap or concrete revetments.
Designed for riverbanks, coastal shorelines, embankments, and landscaped slopes, our geobags combine superior mechanical strength with natural greening capabilities, ensuring long-term protection while promoting vegetation growth. Whether used in flood-prone areas, highway embankments, or beachfront developments, these geo bags deliver unmatched stability, flexibility, and environmental benefits.
Geotube Specification
│ SPECIFICATION │
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 | 85 | |
How to use Geobags
Geotube are easy to install and can be used for a variety of purposes. The installation process usually includes the following steps:
1. Decide on the size and shape of the Geotube based on your specific application.
2. Place the geotube where necessary and secure it with anchors or other means.
3. Fill the geotube with suitable material.
4. Once the geotube is filled, it can be compacted as needed.
Overall, Geotextile Geotube is a versatile and effective geosynthetic material that can be used in a variety of applications. Its unique properties make it an ideal choice for erosion control, soil stabilization and dewatering. When properly installed and maintained, Geotube can help improve the productivity and lifespan of a variety of construction projects.
Features & Benefits
Advanced Erosion Control & Soil Stabilization
Effectively combats erosion caused by water currents, wave action, wind, and rainfall.
Confines soil and aggregates within the bag structure, preventing displacement and maintaining slope integrity.
Reduces sediment loss, protecting aquatic ecosystems and preventing downstream sedimentation.
Ideal for both still water and high-flow environments, including rivers, canals, and coastal zones.
01
Eco-Friendly Greening & Vegetation Support
Effectively combats erosion caused by water currents, wave action, wind, and rainfall.
Confines soil and aggregates within the bag structure, preventing displacement and maintaining slope integrity.
Reduces sediment loss, protecting aquatic ecosystems and preventing downstream sedimentation.
Ideal for both still water and high-flow environments, including rivers, canals, and coastal zones.
02
Ultra-Durable Woven Geotextile Construction
Made from high-tenacity polypropylene (PP) for exceptional tensile strength and resistance to tearing.
UV-stabilized to withstand prolonged sun exposure without degradation.
Chemically inert, ensuring resistance to alkali, acid, and microbial attacks in harsh environments.
Permeable yet soil-retentive, allowing proper drainage while preventing soil washout.
03
Flexible, Easy-to-Install, and Adaptable
Lightweight and easy to transport, reducing labor and machinery costs compared to rock or concrete alternatives.
Can be filled on-site with locally available materials (sand, soil, gravel, or recycled aggregates), minimizing logistical expenses.
Modular design allows for custom configurations, adapting to curved slopes, uneven terrain, or complex hydraulic conditions.
Suitable for both temporary (flood barriers) and permanent (embankment reinforcement) applications.
04
Project for Geotube

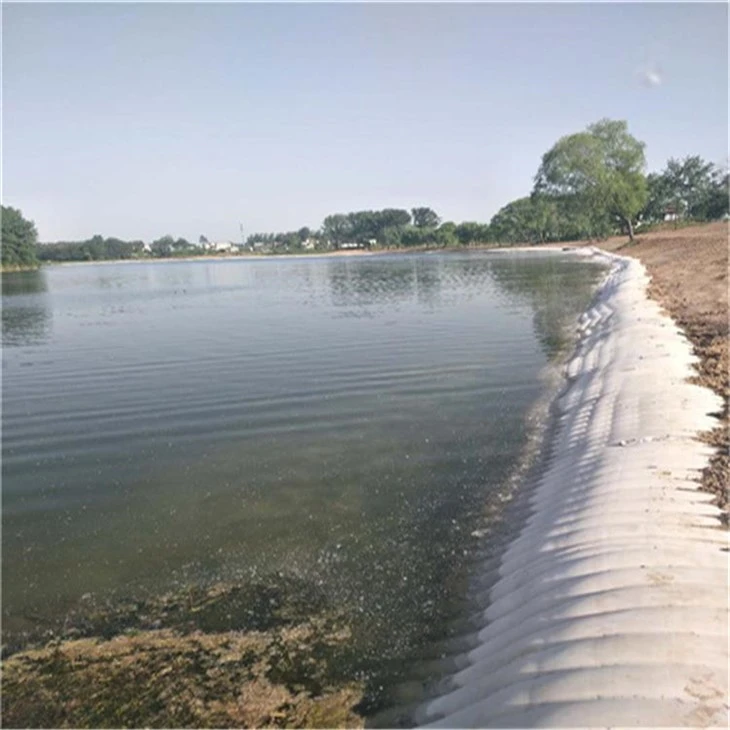

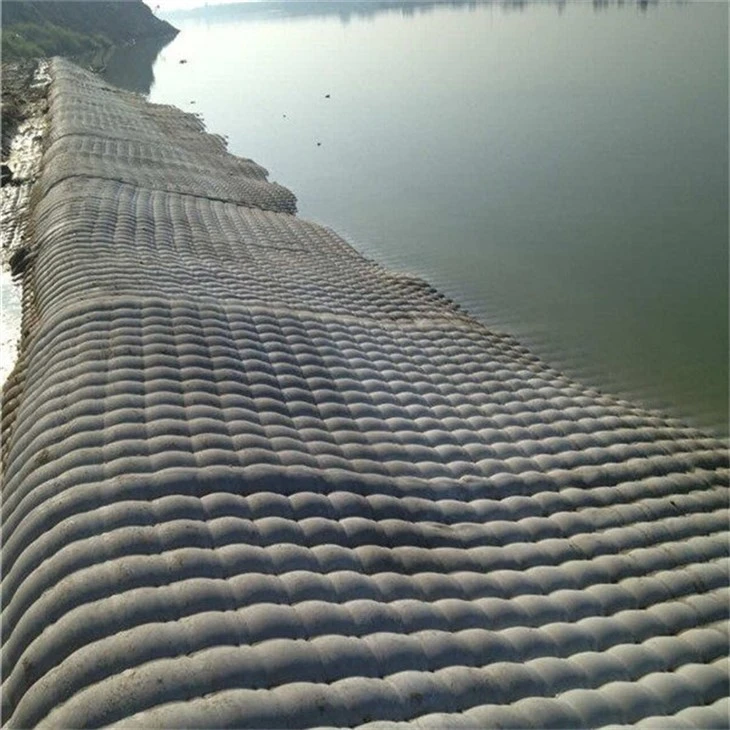

1. Riverbank & Coastal Protection
Shields river edges, estuaries, and shorelines from scouring and wave erosion.
Reinforces levees and flood embankments to withstand high-velocity water flow.
2. Slope & Embankment Stabilization
Secures highway, railway, and hillside slopes against landslides and surface erosion.
Used in land reclamation and mining rehabilitation projects.
3. Landscaping & Green Engineering
Creates terraced gardens, reinforced green walls, and vegetated retaining structures.
Enhances urban drainage systems and stormwater management with permeable soil confinement.
4. Flood Control & Hydraulic Structures
Strengthens drainage channels, spillways, and culverts against water-induced erosion.
Acts as a temporary flood barrier when filled rapidly during emergencies.\
5.Sand Dune & Desert Fixation
Stabilizes beachfronts and desert margins against wind and water erosion.
Supports dune restoration in coastal conservation projects
