Products Description
Modern lane construction requires solutions that balance structural integrity and practicality. Geocell Driveway systems use advanced cellular confinement technology to transform ordinary aggregate into a high-performance pavement. Unlike traditional methods that rely on excessively thick material, our three-dimensional matrix forms interlocking structural layers that effectively prevent rutting, potholes, and pavement degradation.

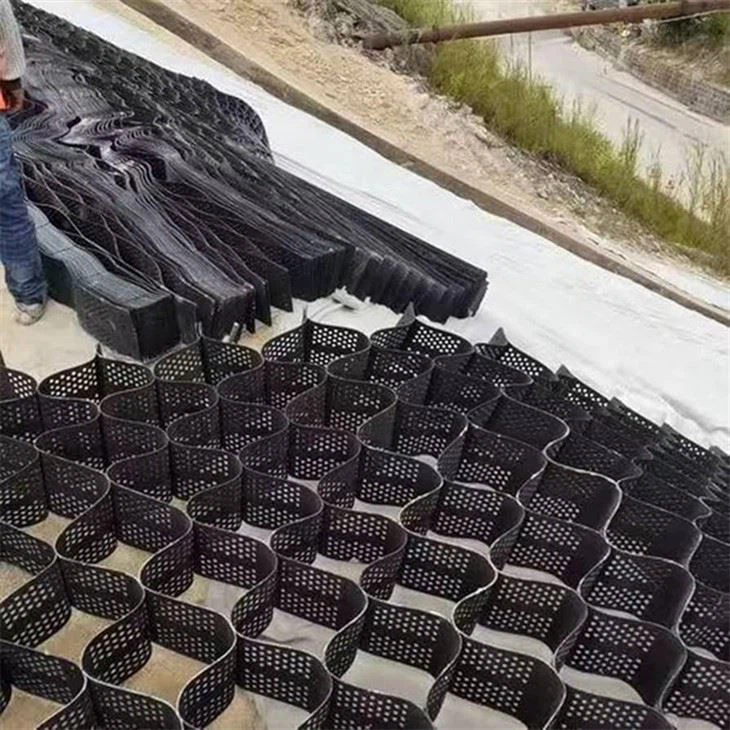

The secret is the principle of geometric confinement. The cellular structure forms thousands of individual cells as it expands,
1. Prevents lateral movement of fill material
2. Distributes wheel loads over a larger area
3. Maintains pavement elevation under dynamic loads
4. Reduces required aggregate thickness by up to 50%
|
PHYSICAL PROPERTIES |
Test Method |
Unit |
RH330 |
RH356 |
RH445 |
RH660 |
RH712 |
|
Weld spacing |
|
mm |
330 |
356 |
445 |
660 |
712 |
|
Cell Depth |
|
mm |
75,100,125,150,200,250,300 |
||||
|
Cell Width (W) ±3% |
|
mm |
224 |
259 |
320 |
488 |
508 |
|
Cell Length (L) ±3% |
|
mm |
210 |
224 |
287 |
436 |
475 |
|
Nominal panel width |
|
m |
2.4 |
2.5 |
2.5 |
2.4 |
2.5 |
|
Nominal panel length |
|
m |
6.1 |
6.5 |
8.3 |
12.6 |
13.7 |
|
Polymer density |
ASTM D 1505 |
g/cm³ |
0.935 - 0.965 |
||||
|
Environmental Stress Crack Resistance |
ASTM D 1693 |
Hours |
>5000 |
||||
|
Carbon Black content |
ASTM D 1603 |
% |
min. 2 |
||||
|
Nominal sheet thickness (post texturing) |
ASTM D 5199 |
mm |
min. 1.2 |
||||
|
Material |
|
|
Compound of polyethylene and additives |
||||
|
Texture |
|
|
Multiple rhomboidal indentations |
||||
|
Perforations |
|
|
<10mm diameter holes, horizontal rows <12% cell wall surface area |
||||
|
Colour |
|
|
Black |
||||
|
MECHANICAL PROPERTIES |
Cell depth |
mm |
75 |
100 |
125 |
150 |
200 |
|
Seam Peel Strength ±5% |
EN ISO 13426-1 |
N |
915 |
1220 |
1525 |
1830 |
2440 |
|
DURABILITY PROPERTIES |
|||||||
|
Weathering (UV Exposure) |
EN 12224 |
Days |
30 |
||||
|
Combined ageing (Oxidation, temperature & moisture) |
EN ISO 13438 |
Service Life |
100 years |
||||
Key Features & Benefit of Geocell Driveway Systems
Structural Performance Features
1. Load Distribution Efficiency: Converts point loads to surface loads, with stress distribution angles up to 45°
2. Enhanced Shear Strength: Effective shear strength of filler material increased by 300-400%
3. Elastic Memory: Returns to original shape after load removal, unlike permanent deformation of unreinforced surfaces
4. Freeze-Thaw Resistance: Prevents frost heave damage by controlling drainage
Material Science Innovation
1. High Modulus Polymer Alloy: Designed for extreme temperature performance.
2. Wear Resistant Formula: Withstands continuous vehicle traffic with no surface wear
3. UV Resistant Ingredients: Maintains mechanical properties even after decades of exposure
4. Chemical Resistant Blend: Resists corrosion from oil, gasoline and de-icing salts.
Performance Comparison: Geocell vs Traditional Driveways
| Parameter | Geocell Driveway | Conventional Gravel | Asphalt Overlay |
| Rut Resistance | Excellent (≤5mm deformation) | Poor (≥50mm rutting) | Moderate (15-25mm) |
| Maintenance Cycle | 10-15 years | Annual | 5-7 years |
| Installation Time | 1-2 days | 1 day | 3-5 days |
| Drainage Capacity | Superior (30% faster) | Good | Poor |
| Load Capacity | Up to 20-ton axle loads | Limited to 5-ton | 10-ton typical |
Environmental Benefits
Reduce Aggregate Use: 40-60% less material required
Carbon Footprint: 75% lower than asphalt alternatives
Permeability: maintains natural water recharge ra
Life Cycle Considerations
Recyclability: 100% recyclable after end-of-life material
Adaptability: easy to modify for future upgrades
Renewability: simple pavement renovation procedure
Case Study Applications of Geocell Driveway Systems
Final Solution
Driveway to a mountain estate
Challenge: 18% slope, poor roadbed
Solution: 150mm geocell system with crushed granite
Result: 5 years of operation with zero maintenance
Access road to a rural clinic
Challenge: frequent ambulance traffic on clay soil
Solution: 200mm reinforced limestone matrix
Result: 24/7 access
Construction Logistics Yard
Challenge: daily transport of heavy equipment
Solution: double-layer geocell with mixed stone
Result: 3 years of intensive use with no failures
FAQ
Q: What is a geocell?
A 3D honeycomb structure made from strong polymers, filled with soil or gravel to stabilize weak ground and prevent erosion.
Q: Where is it used?
Roads, slopes, retaining walls, landscaping, and shoreline protection.
Q: How is it different from geogrids?
Geocells provide 3D confinement (better load distribution and erosion control) vs. geogrids' flat reinforcement.
Q: What materials can fill a geocell?
Gravel (for roads), soil/sand (landscaping), or concrete (permanent structures).
Q: How long does it last?
20-50+ years, resistant to UV, chemicals, and extreme weather.
Contact us today to discuss your project needs and discover how Cellular Geocell can provide the perfect stabilization solution!
