Honeycomb Geocell

Name: China Honeycomb Geocell Manufacturers, Suppliers and Factory - Low Price Honeycomb Geocell - Ruiheng Building Materials
Brand: Ruiheng
SKU: 270942337

Honeycomb Geocell represents the next generation of soil stabilization technology, utilizing a unique cellular confinement design to create high-performance reinforced structures. This innovative system revolutionizes how engineers approach ground reinforcement, offering exceptional strength, flexibility, and cost-efficiency across a wide range of construction and environmental applications. The three-dimensional honeycomb matrix provides unparalleled confinement for infill materials, converting ordinary soil or aggregate into a structurally enhanced composite material. This technology has become essential for modern infrastructure projects that demand reliable, long-lasting solutions for challenging ground conditions.

Send Inquiry

Description

Products Description

product-810-408

PHYSICAL PROPERTIES	Test Method	Unit	RH330	RH356	RH445	RH660	RH712
Weld spacing		mm	330	356	445	660	712
Cell Depth		mm	75,100,125,150,200,250,300
Cell Width (W) ±3%		mm	224	259	320	488	508
Cell Length (L) ±3%		mm	210	224	287	436	475
Nominal panel width		m	2.4	2.5	2.5	2.4	2.5
Nominal panel length		m	6.1	6.5	8.3	12.6	13.7
Polymer density	ASTM D 1505	g/cm³	0.935 - 0.965
Environmental Stress Crack Resistance	ASTM D 1693	Hours	>5000
Carbon Black content	ASTM D 1603	%	min. 2
Nominal sheet thickness (post texturing)	ASTM D 5199	mm	min. 1.2
Material			Compound of polyethylene and additives
Texture			Multiple rhomboidal indentations
Perforations			<10mm diameter holes, horizontal rows <12% cell wall surface area
Colour			Black
MECHANICAL PROPERTIES	Cell depth	mm	75	100	125	150	200
Seam Peel Strength ±5%	EN ISO 13426-1	N	915	1220	1525	1830	2440
DURABILITY PROPERTIES
Weathering (UV Exposure)	EN 12224	Days	30
Combined ageing (Oxidation, temperature & moisture)	EN ISO 13438	Service Life	100 years

Key Features & Benefit

Key Advantages of Honeycomb Geocell Technology

Engineered Structural Performance

The geometric honeycomb configuration creates a highly efficient load-transfer mechanism, distributing stresses evenly across the reinforced area. This results in:

- Increased bearing capacity of weak subgrades

- Elimination of differential settlement

- Prevention of lateral spreading under load

2. Sustainable Construction Solution

Honeycomb Geocell promotes environmentally responsible construction by:

- Reducing aggregate requirements by up to 60%

- Minimizing excavation and earthmoving operations

- Allowing use of locally available infill materials

- Supporting vegetation growth for eco-friendly slope stabilization

3. Rapid Deployment & Cost Efficiency

Projects benefit from significantly reduced construction timelines due to:

- Simple, tool-free installation process

- Immediate load-bearing capability after infill placement

- Elimination of lengthy curing periods required for concrete alternatives

4. Exceptional Durability & Longevity

Manufactured from high-performance polymers, Honeycomb Geocell offers:

- UV resistance for long-term outdoor exposure

- Chemical inertness against soil contaminants

- Temperature stability across extreme climates

- Resistance to biological degradation

5. Unparalleled Application Versatility

The modular design adapts to virtually any terrain or project requirement, from:

- Flat work platforms to vertical retaining structures

- Lightweight landscaping to heavy industrial applications

- Temporary installations to permanent infrastructure

Applications of Honeycomb Geocell

1. Transportation Infrastructure

Highway & Railway Subgrades: Stabilizes weak soils beneath pavements and tracks

Bridge Approach Embankments: Eliminates bump transitions at bridge ends

Airfield Pavements: Provides stable base for runways and taxiways

2. Earth Retention & Slope Protection

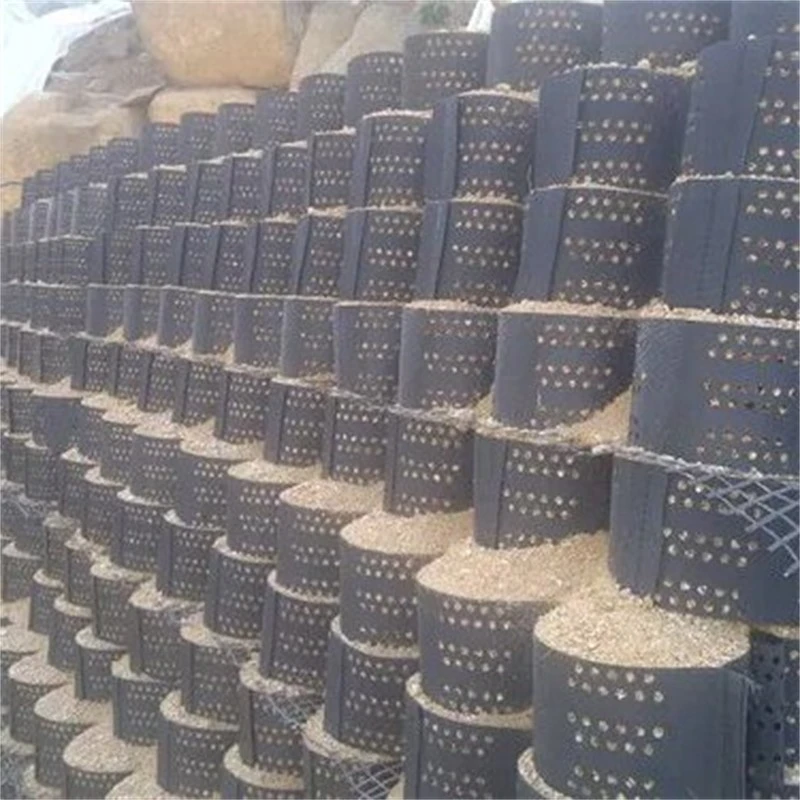

Reinforced Soil Structures: Creates cost-effective retaining walls

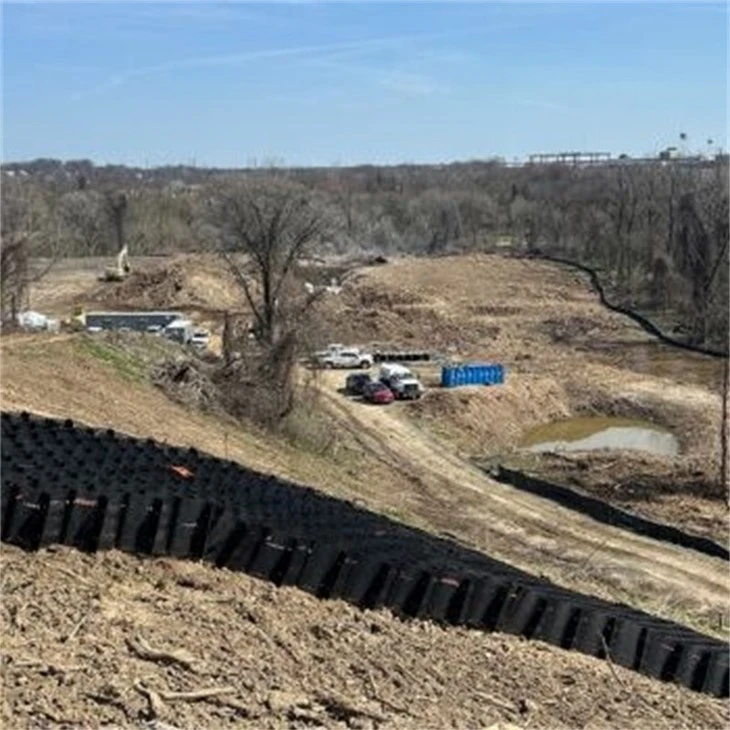

Landslide Remediation: Stabilizes failing slopes with or without vegetation

Channel Linings: Prevents erosion in drainage ways and spillways

3. Industrial & Energy Sector Solutions

Heavy Equipment Working Platforms: Supports cranes and drilling rigs

Solar Farm Access Roads: Creates durable all-weather surfaces

Wind Turbine Foundations: Distributes heavy point loads effectively

4. Environmental & Water Management

Erosion Control Systems: Protects shorelines and riverbanks

Landfill Liners & Caps: Enhances stability of waste containment systems

Stormwater Management: Reinforces retention basin slopes

5. Military & Emergency Applications

Rapid Deployment Roadways: Creates instant access over soft ground

Helipads & Landing Zones: Provides stable surfaces in remote locations

Disaster Recovery: Quickly stabilizes damaged infrastructure

product-800-692

Why Choose Honeycomb Geocell Over Conventional Methods?

✔ Superior Load Distribution – Converts vertical loads into lateral confinement forces
✔ Material Efficiency – Achieves greater strength with less aggregate
✔ Adaptive Design – Accommodates ground movement without structural failure
✔ All-Weather Installation – Can be deployed in virtually any conditions
✔ Low Maintenance – Resists common failure modes of traditional methods
