Plastic HDPE geocells are made of a new type of high-strength geosynthetics, which is popular at home and abroad, according to the implementation of GB/T 19274-2003 or ASTM D standards, welded reinforced HDPE sheets with high strength. Masu. Ultrasonic power is applied to form a three-dimensional network structure. Easy to fold and convenient to carry.
What is a Geocell?

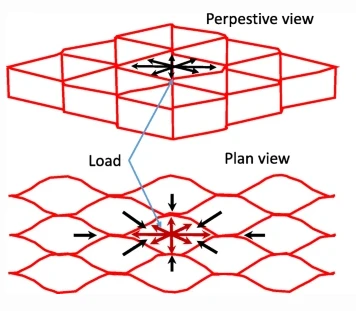

A geocell is a honeycomb-like three-dimensional cell structure that confines the packed compacted material, reducing the lateral movement of soil particles and distributing applied loads over a wider area.
Geocells are generally used in the construction of canals, embankments, retaining walls, railways and highways, and slope stability.

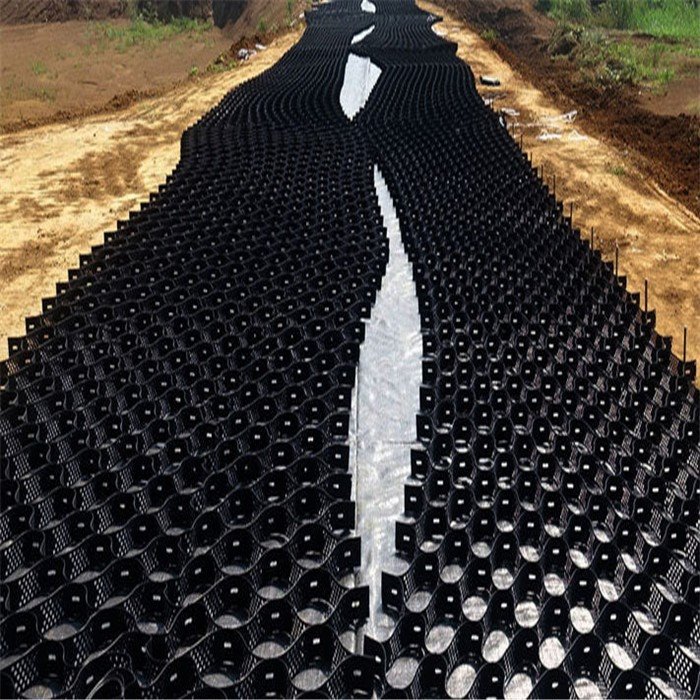

Geocells are three-dimensional mats of cellular structures applied to slope surfaces and walls that greatly increase resistance to erosive forces, such as stormwater runoff on steep or unstable slopes, or slopes exposed to severe hydraulic or mechanical stress.
|
Material Properties |
unit |
|
|
|
|
Tested Method |
|
Cell Depth |
mm |
75 |
100 |
150 |
200 |
|
|
Polymer Density |
g/cm3 |
0.935-0.965 |
ASTM D 1505 |
|||
|
Enviroment Stress Crack Resistance |
Hours |
>400 |
ASTM D 5397 |
|||
|
Enviroment Stress Crack Resistance |
Hours |
6000 |
ASTM D 1693 |
|||
|
Carbon Black Content |
% |
1.5%-2.0% |
ASTM D 1603 |
|||
|
Nominal Sheet Thickness Before Texturing |
mm |
1.27-5%,+10% |
ASTM D 5199 |
|||
|
Nominal Sheet Thickness After Texturing |
mm |
1.27-5%,+10% |
ASTM D 5199 |
|||
|
Strip Puncture Resistance |
N |
450 |
ASTM D 4833 |
|||
|
Seam Peel Strength |
N |
1065 |
1420 |
2130 |
2840 |
EN ISO 13426-1B |
|
Seam Efficiency |
% |
GRI100 |
GRI-GS13 |
|||
|
Norminal Expanded Cell Size(width x length) |
mm |
320x287,475x508 etc |
|
|||
|
Norminal Expanded Panel Size(width x length) |
m |
2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44 |
|
|||
Environmental Protection advantages
1. Soil Protection: Geocell can be used for soil protection and erosion prevention. It stabilizes the soil surface, prevents water erosion and wind erosion, and protects soil quality and structure. This helps reduce soil erosion and soil runoff, maintaining soil fertility and sustainability.
2. Water resources protection: Geocell can be used to protect rivers, riverbanks and lakes. It can reduce water erosion and erosion and protect water resources. By stabilizing river channels and river banks and reducing the flow of sediment into water bodies, the quality of water bodies can be improved and the health of ecosystems maintained.
3. Vegetation protection: Geocell can be used for vegetation protection and ecological restoration. It provides a stable surface and moisture retention capabilities, aiding plant growth and root development. By protecting vegetation cover, Geocells help protect the integrity and diversity of ecosystems.
4. Sewage treatment: Geocell can be used to construct percolation beds or soil filter layers in sewage treatment systems. It provides a stable structure that can support the filter media and treatment process, effectively treating sewage and reducing pollution of water bodies.
5. Sustainability: Geocell is a reusable material that can be used on multiple projects and has a long lifespan. It can reduce the demand for raw materials, reduce resource consumption and waste generation, and help achieve sustainable development goals.
